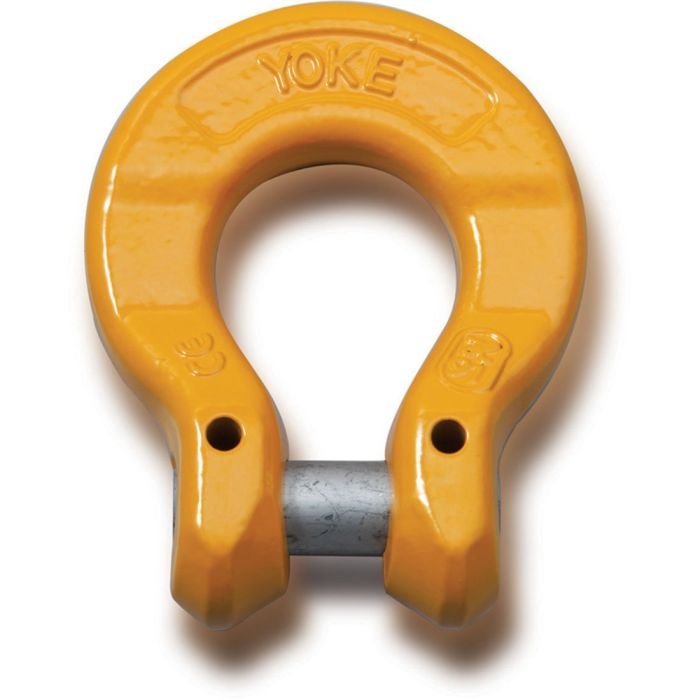

Yoke 8-018 Grade 80 Omega Link 1/2″ (WLL 11,684 lbs)

Features:

• Rated for use with alloy chain grade 80 and grade 100 for lifting applications
• Tested according to DIN EN 1677

Specifications:

• Fits Chain: 13mm (1/2″)
• Working Load Limit (WLL): 5.30 tons (11,684 lbs)

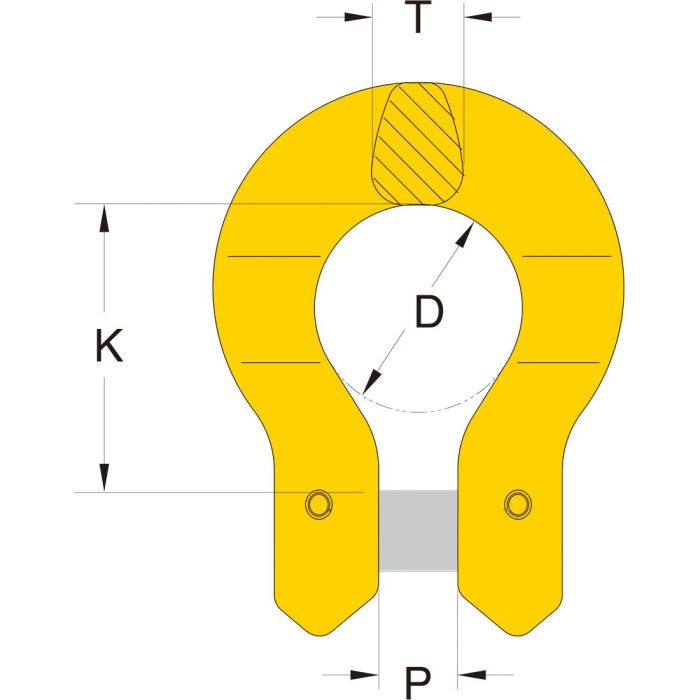

• (D): 42mm (1-5/8″)
• Inside Length (K): 55mm (2-3/16″)
• Opening Length (P): 16mm (5/8″)
• (T): 17mm (11/16″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
