Yoke 8-018 Grade 80 Omega Link 3/4″ (WLL 27,558 lbs)

Features:

• Rated for use with alloy chain grade 80 and grade 100 for lifting applications
• Tested according to DIN EN 1677

Specifications:

• Fits Chain: 18mm – 20mm (3/4″)
• Working Load Limit (WLL): 12.50 tons (27,558 lbs)

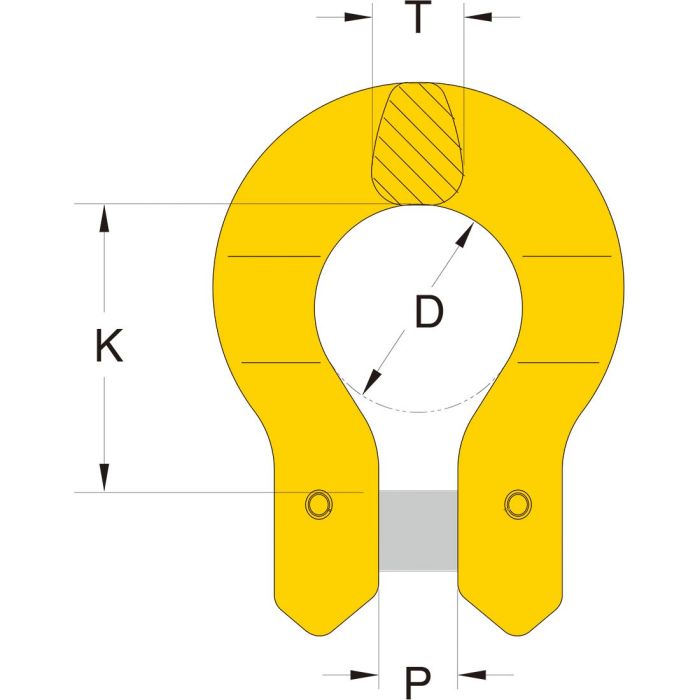

• (D): 58mm (2-5/16″)
• Inside Length (K): 71mm (2-3/4″)
• Opening Length (P): 21mm (13/16″)
• (T): 28mm (1-1/8″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
