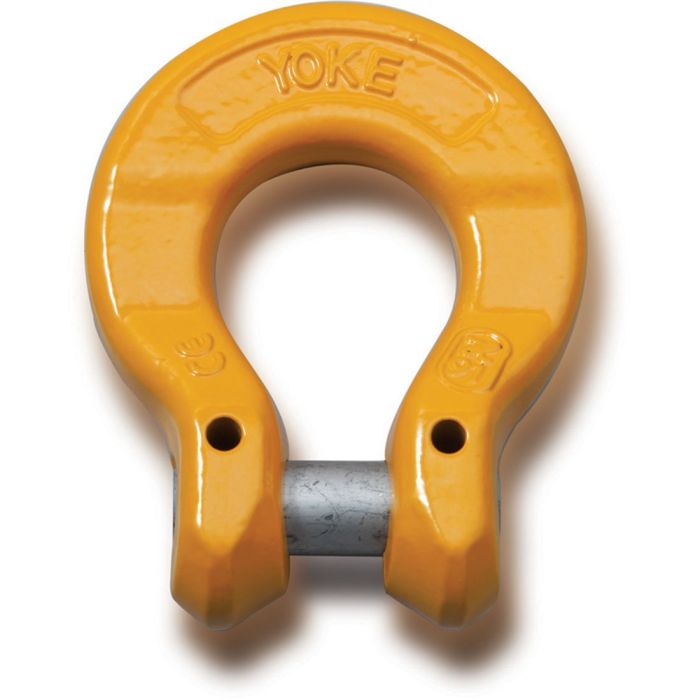

Yoke 8-018 Grade 80 Omega Link 3/8″ (WLL 6944 lbs)

Features:

• Rated for use with alloy chain grade 80 and grade 100 for lifting applications
• Tested according to DIN EN 1677

Specifications:

• Fits Chain: 10mm (3/8″)
• Working Load Limit (WLL): 3.15 tons (6944 lbs)

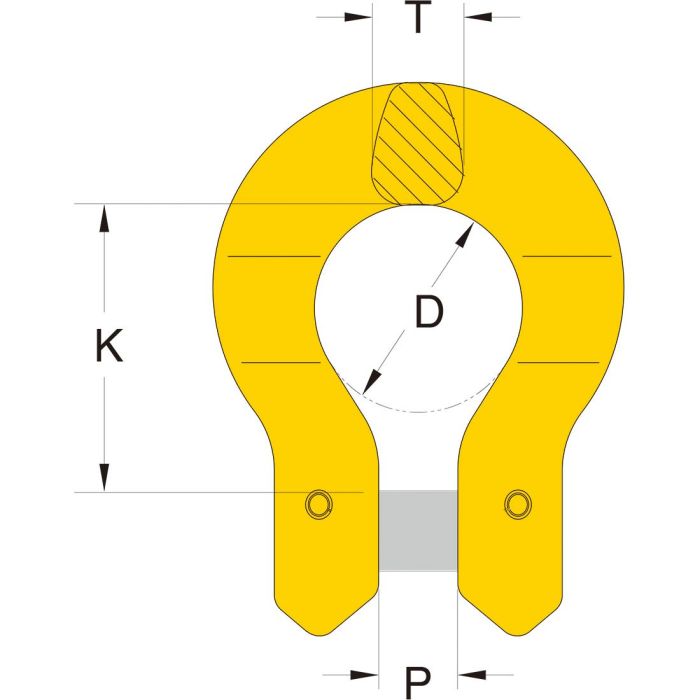

• (D): 32mm (1-1/4″)
• Inside Length (K): 44mm (1-3/4″)
• Opening Length (P): 12mm (1/2″)
• (T): 15mm (5/8″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
