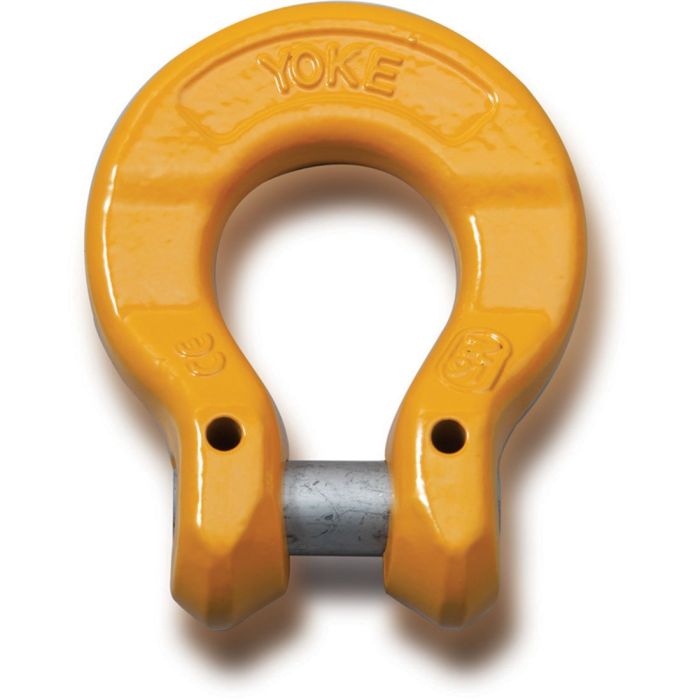

Yoke 8-018 Grade 80 Omega Link 5/8″ (WLL 17,637 lbs)

Features:

• Rated for use with alloy chain grade 80 and grade 100 for lifting applications
• Tested according to DIN EN 1677

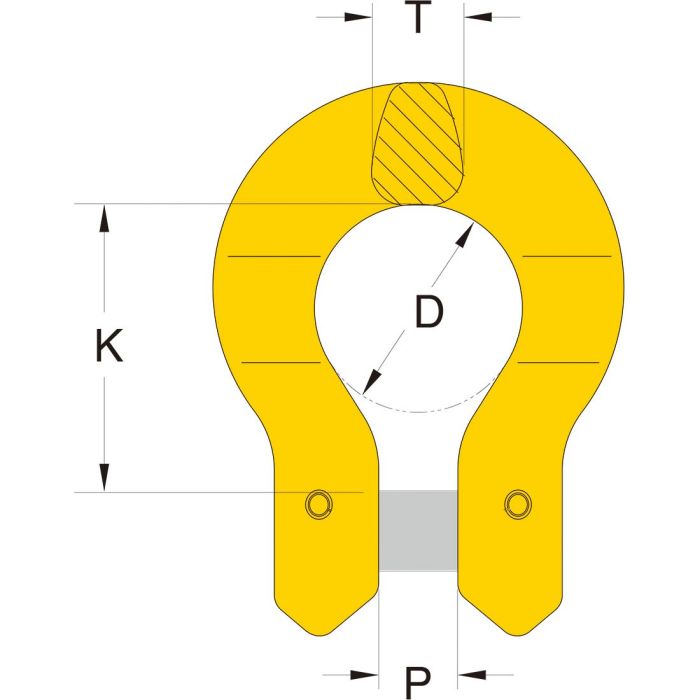

Specifications:

• Fits Chain: 16mm (5/8″)
• Working Load Limit (WLL): 8.00 tons (17,637 lbs)
• (D): 50mm (1-15/16″)
• Inside Length (K): 69mm (2-11/16″)
• Opening Length (P): 18mm (3/4″)
• (T): 22mm (7/8″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
