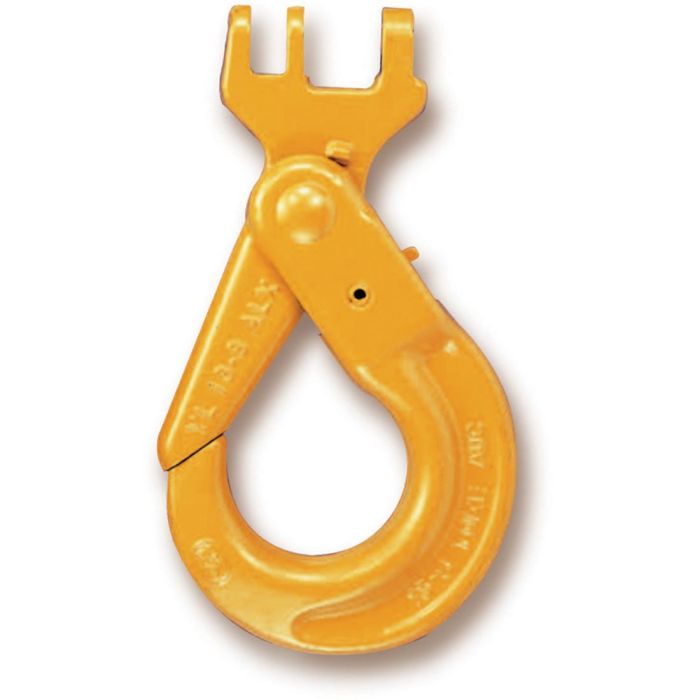

Yoke 8-023 Grade 80 Coupling Self Locking Hook 1″ (WLL 46,738 lbs)

YOKE’s 8-023 G-80 Coupling Self Locking Hook is an innovative, fine design with ” Coupling Pin ” system hook is able to solve any of your problems in Chain, Wire Rope and Synthetic Slings.

Features:

• Create safer lifting with the use of ” Self Locking ” system
• Assembly is fast and easy with only a hammer required
• Tested according to DIN EN 1677
• Acquired H91 certificate approved by BG German company
• Patent: Taiwan, USA, Switzerland, France, Germany, Italy, Japan, China

Specifications:

• Fits Chain Size: 26mm (1″)
• Working Load Limit (WLL): 21.20 tons (46,738 lbs)

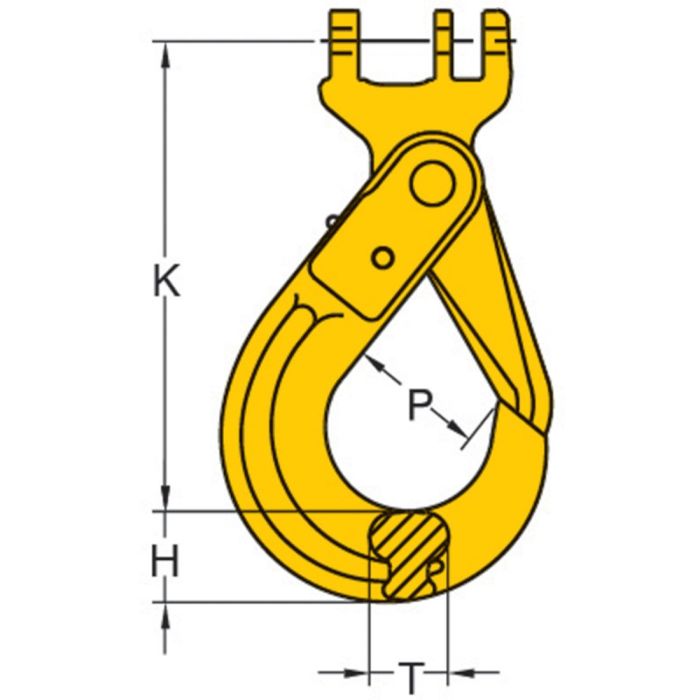

• (H): 69mm (2.72″)
• (K): 329mm (12.95″)
• (P): 99mm (3.90″)
• (T): 56mm (2.20″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
• Does not include coupling pin and sleeve
