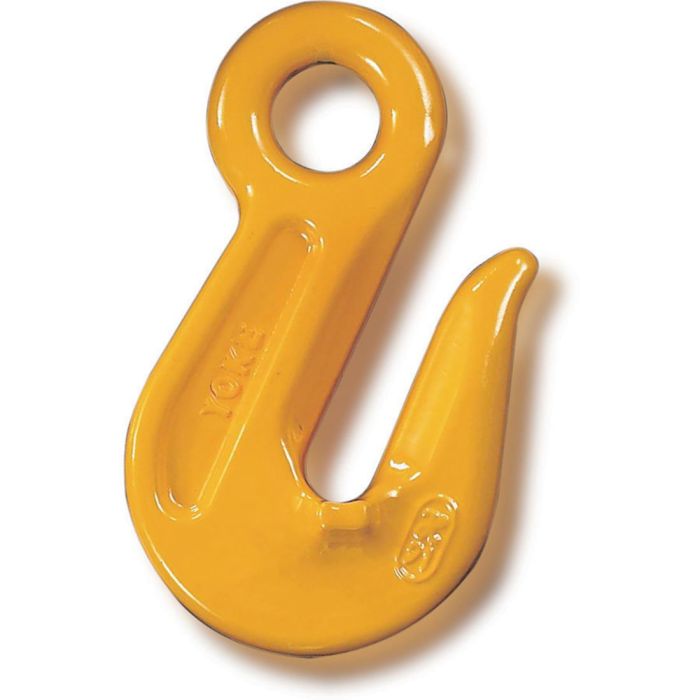

Yoke 8-041 Grade 80 Eye Grab Hook 1-1/4″ (WLL 69,445 lbs)

Features:

• Quenched and Tempered Alloy Steel
• Tested according to DIN EN 1677
• No reduction of working load limit
• Supporting wings prevent chain link deformation
• ***Not for use with Omega Link Item. 8-018***

Specifications:

• Fits Chain Size: 32mm (1-1/4″)
• Working Load Limit (WLL): 31.50 tons (69,445 lbs)

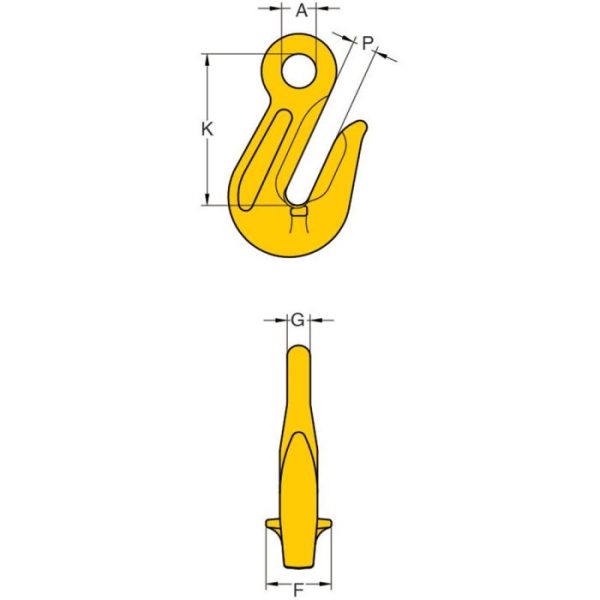

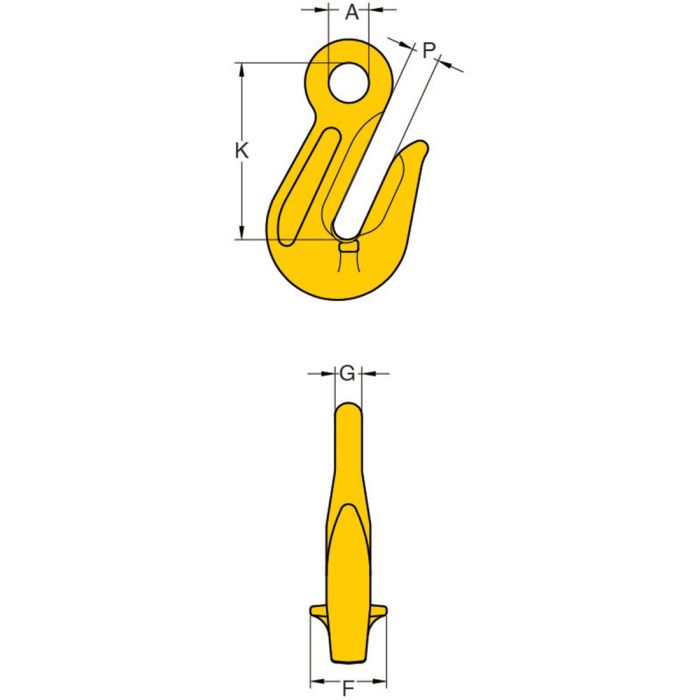

• (A): 61mm (2.40″)
• (F): 127mm (5.00″)
• (G): 40mm (1.57″)
• (K): 230mm (9.06″)
• (P): 37mm (1.46″)
• Design Factor 4:1
