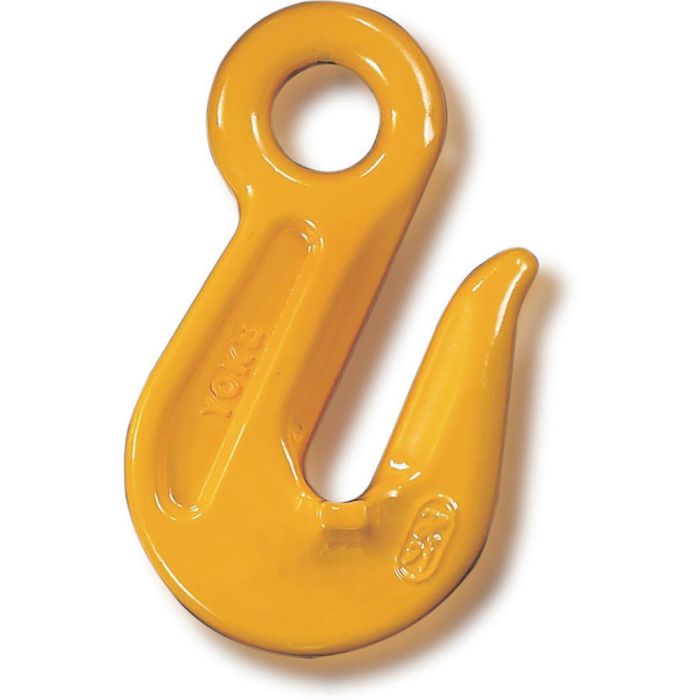

Yoke 8-041 Grade 80 Eye Grab Hook 7/8″ (WLL 33,069 lbs)

Features:

• Quenched and Tempered Alloy Steel
• Tested according to DIN EN 1677
• No reduction of working load limit
• Supporting wings prevent chain link deformation
• ***Not for use with Omega Link Item. 8-018***

Specifications:

• Fits Chain Size: 22mm (7/8″)
• Working Load Limit (WLL): 15.00 tons (33,069 lbs)

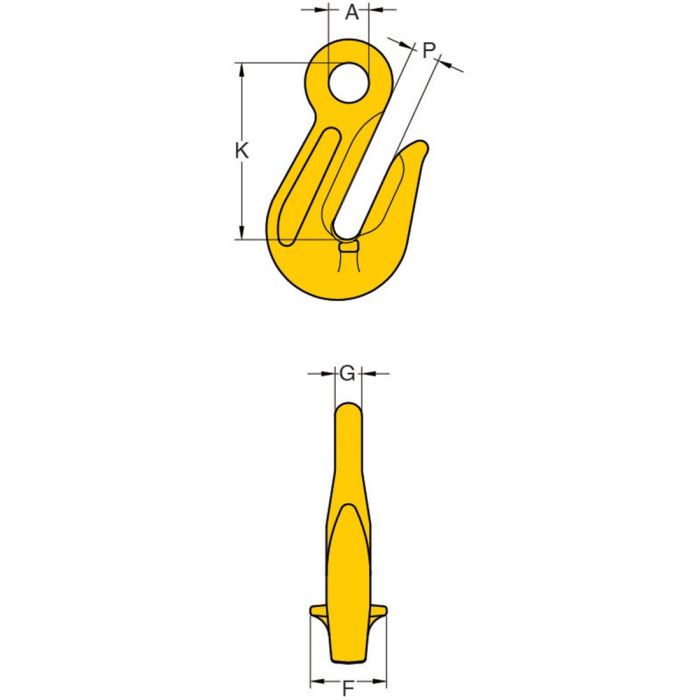

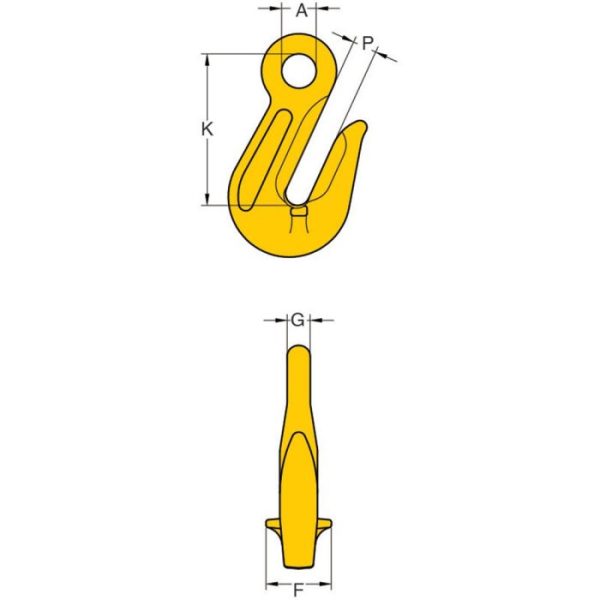

• (A): 38mm (1.50″)
• (F): 70mm (2.76″)
• (G): 26mm (1.02″)
• (K): 165mm (6.50″)
• (P): 26mm (1.02″)
• Design Factor 4:1
