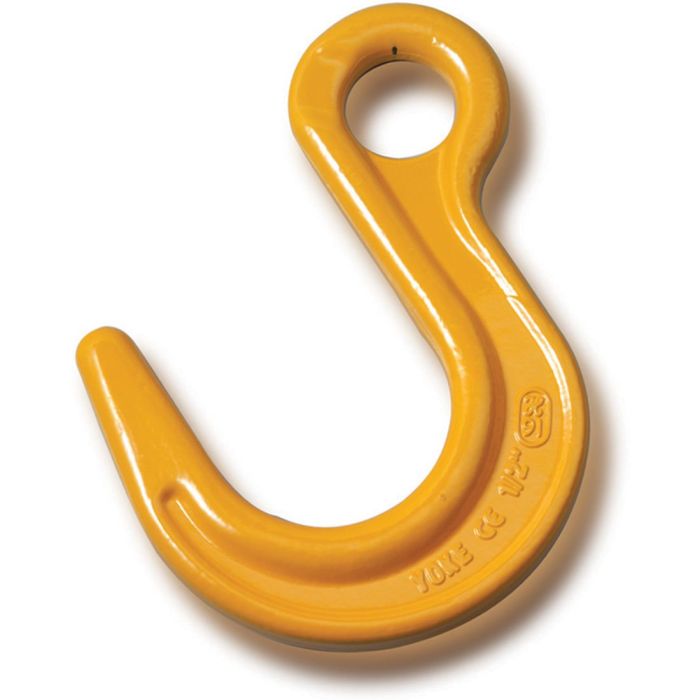

Yoke 8-047 Grade 80 Eye Foundry Hook 5/8″ (WLL 17,637 lbs)

Yoke Grade 80 Eye Foundry Hooks are designed for the assembly of chain slings where wide throat openings are necessary.

Features:

• Quenched and Tempered Alloy Steel
• Tested according to DIN EN 1677
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Tempering temperature minimum 400°C
• Before using the hook, check whether hooks without safety latches are allowed to be used for the particular application

Specifications:

• Fits Chain Size: 5/8″
• Working Load Limit (WLL): 8.00 tons (17,637 lbs)
• Design Factor 4:1
