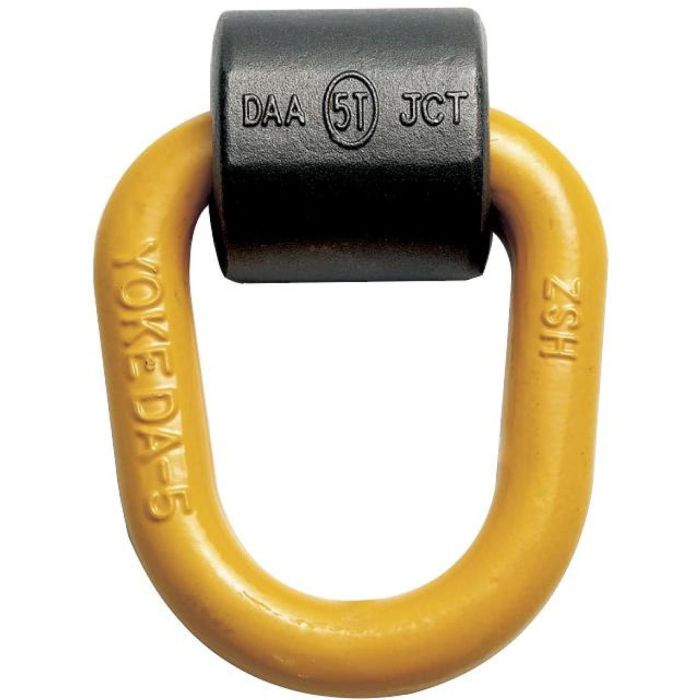

Yoke 8-057 Grade 80 Weld-On Lifting Point 5 Ton (WLL 11,000 lbs)

Features:

• Pivots through 180°
• Proof tested to 2.5 times the WLL
• Fatigue rated to 1.5 times the WLL
• Manufactured from forged alloy steel, quenched and tempered
• Manufactured and tested in accordance with EN1677-1
• Load rated parts are 100% magnaflux crack detected
• Individual forged parts are traceable to Test Certification
• All YOKE Lifting points meet or exceed all the requirements of ASME B30.26
• Lugs designed to assist the welding process

Specifications:

• Working Load Limit: 11,000 lbs (5.00 tons)
• (A): 120mm (4.72″)
• (B): 63mm (2.48″)
• (C): 66mm (2.6″)
• (D): 22mm (0.87″)
• (E): 22mm (0.87″)
• (F): 118mm (4.65″)
• (G): 41mm (1.61″)
• (H): 77mm (3.03″)
• (L): 157mm (6.18″)
• (W): 64mm (2.52″)
• (HV): 7mm (0.28″)
• (a): 3mm (0.12″)
