Yoke 8-0573 Weld-On Lifting Point 1 Ton (2200 lbs WLL)

$3.31

We Offer Customization & Great Prices! Feel Free to Contact Us!

10000 in stock

SKU: de49f95298a74072 Category: Weld-On Lifting Rings & Points

Description

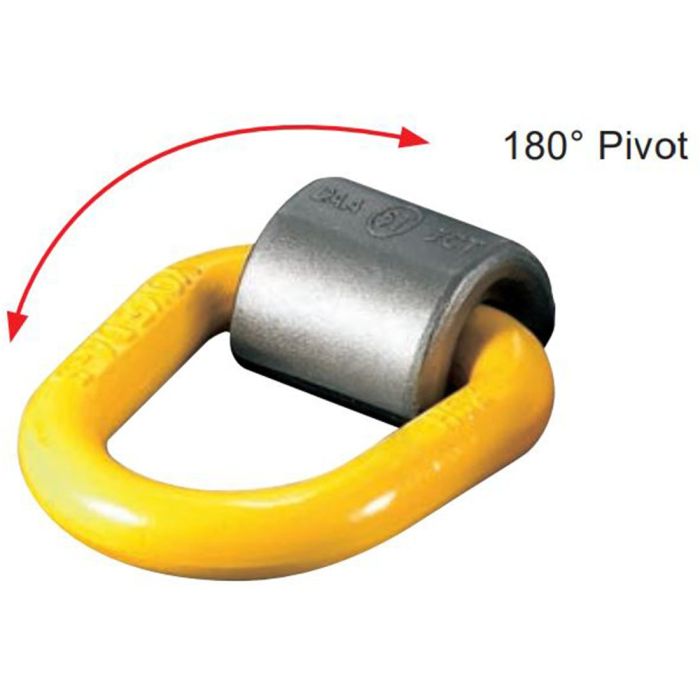

Pivots through 180°
Proof tested to 2.5 times the WLL
Fatigue rated to 1.5 times the WLL
Manufactured from forged alloy steel, quenched and tempered
Manufactured and tested in accordance with EN1677-1
Load rated parts are 100% magnaflux crack detected
Individual forged parts are traceable to Test Certification
All YOKE Lifting points meet or exceed all the requirements of ASME B30.26
Lugs designed to assist the welding process
Finish: Painted
Dimensions:

A: 83mm (3.3″)
B: 41mm (1.6″)
C: 48mm (1.9″)
D: 14mm (0.6″)
E: 14mm (0.6″)
F: 86mm (3.4″)
G: 27mm (1.1″)
H: 58mm (2.3″)
L: 109mm (4.3″)
W: 50mm (2″)
HV: 5mm (0.2″)
a: 3mm (0.1″)

Working Load Limit: 1.00 tons (2200 lbs)
