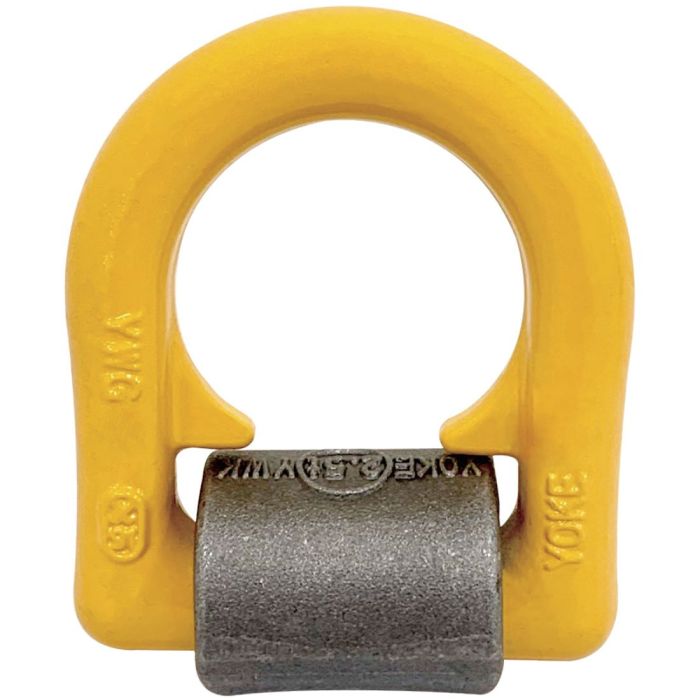

Yoke 8-0575 Digital Super Weld-On Point 6.7 Ton

Features:

• Load ring pivots 180° and Full Loading Capacity in all directions
• Manufactured from forged alloy steel, quenched and tempered
• Tested in accordance with EN1677-1
• 100% magnaflux crack detected
• Lugs designed to assist the welding process
• Protected spring secures the loading ring and reduces noise caused by vibrations

Specifications:

• Ring Diameter: 7/8″
• Working Load Limit (WLL): 6.70 tons (14,740 lbs)
• Inside Length: 2.84″
• Inside Width: 2.64″
• Design Factor 4:1
