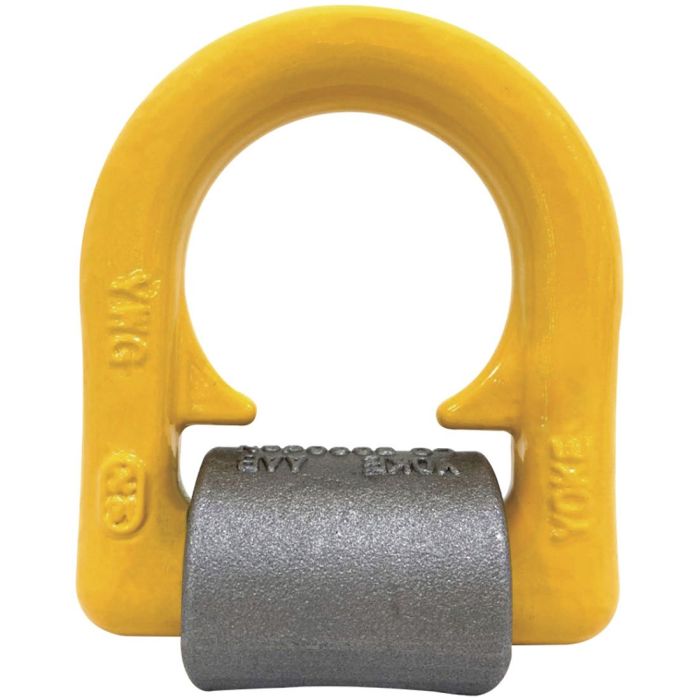

Yoke 8-0576 Digital Lashing Weld-On Point 7/8″

Features:

• Lashing ring pivots 180° and Full Lashing Capacity in all directions
• Manufactured from forged alloy steel, quenched and tempered
• Tested in accordance with EN1677-1
• 100% magnaflux crack detected
• Lugs designed to assist the welding process
• Protected spring secures the lashing ring and reduces noise caused by vibrations

Specifications:

• Ring Diameter: 7/8″
• Lashing Capacity: 29,500 lbs
• Inside Length: 2.84″
• Inside Width: 2.64″
• Design Factor 2:1
