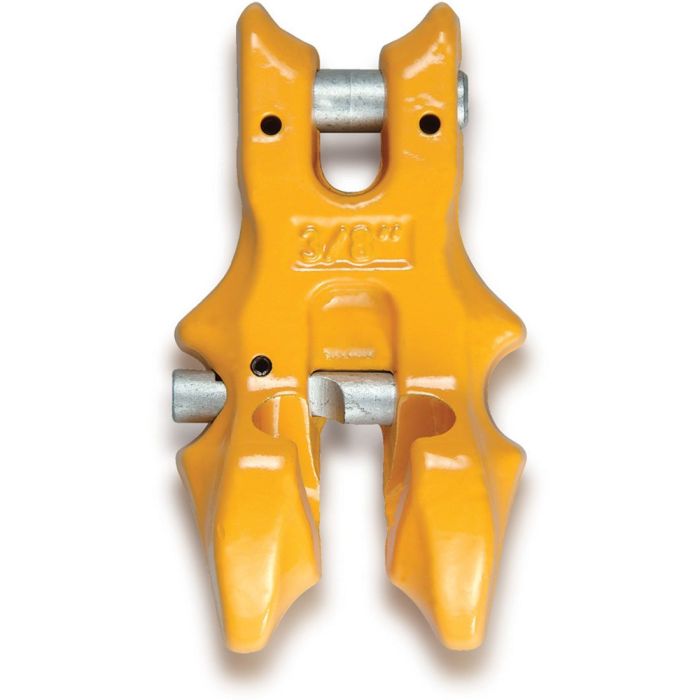

Yoke 8-061 Grade 80 Clevis Clutch Locking Shortener Link 10mm (WLL 6944 lbs)

Yoke’s 8-061 G-80 Clevis Clutch Locking Type allows the clevis clutch to use 100% of the chain sling capacity. The locking system and spring locking pin design is to enhance security and prevent the chains from disengaging.

Features:

• Quenched and Tempered Alloy Steel
• Tested according to DIN EN 1677

Specifications:

• Fits Chain Size: 10mm (3/8″)
• Working Load Limit (WLL): 3.15 tons (6944 lbs)
• (A): 12mm (0.47″)
• (B): 12mm (0.47″)
• (C): 12mm (0.47″)
• (D): 12mm (0.47″)
• (E): 28mm (1.10″)
• (F): 66mm (2.60″)
• Design Factor 4:1
