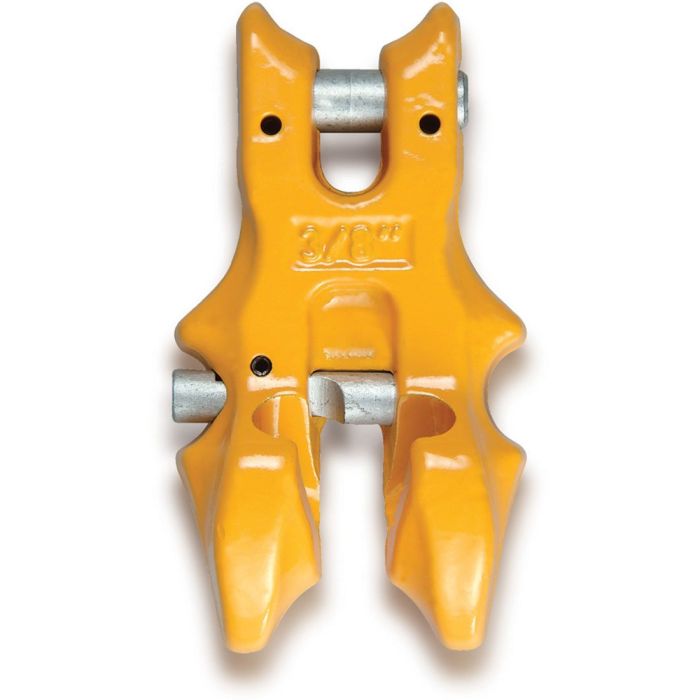

Yoke 8-061 Grade 80 Clevis Clutch Locking Shortener Link 16mm (WLL 17,637 lbs)

Yoke’s 8-061 G-80 Clevis Clutch Locking Type allows the clevis clutch to use 100% of the chain sling capacity. The locking system and spring locking pin design is to enhance security and prevent the chains from disengaging.

Features:

• Quenched and Tempered Alloy Steel
• Tested according to DIN EN 1677

Specifications:

• Fits Chain Size: 16mm (5/8″)
• Working Load Limit (WLL): 8.00 tons (17,637 lbs)
• (A): 18mm (0.71″)
• (B): 21mm (0.71″)
• (C): 19mm (0.75″)
• (D): 19mm (0.71″)
• (E): 48mm (1.89″)
• (F): 103mm (4.06″)
• Design Factor 4:1
