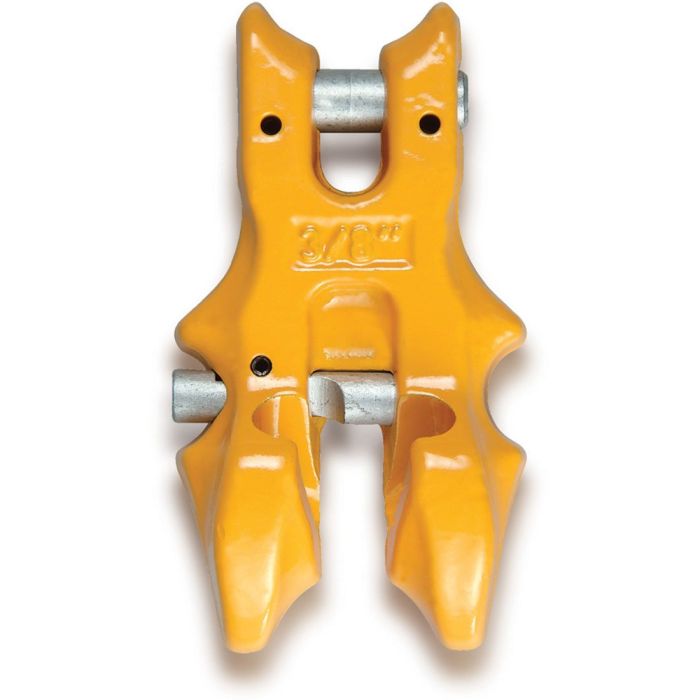

Yoke 8-061 Grade 80 Clevis Clutch Locking Shortener Link 18mm – 20mm (WLL 27,558 lbs)

Yoke’s 8-061 G-80 Clevis Clutch Locking Type allows the clevis clutch to use 100% of the chain sling capacity. The locking system and spring locking pin design is to enhance security and prevent the chains from disengaging.

Features:

• Quenched and Tempered Alloy Steel
• Tested according to DIN EN 1677

Specifications:

• Fits Chain Size: 18mm – 20mm (3/4″)
• Working Load Limit (WLL): 12.50 tons (27,558 lbs)
• (A): 22mm (0.87″)
• (B): 23mm (0.87″)
• (C): 23mm (0.91″)
• (D): 21mm (0.87″)
• (E): 55mm (2.17″)
• (F): 132mm (5.20″)
• Design Factor 4:1
