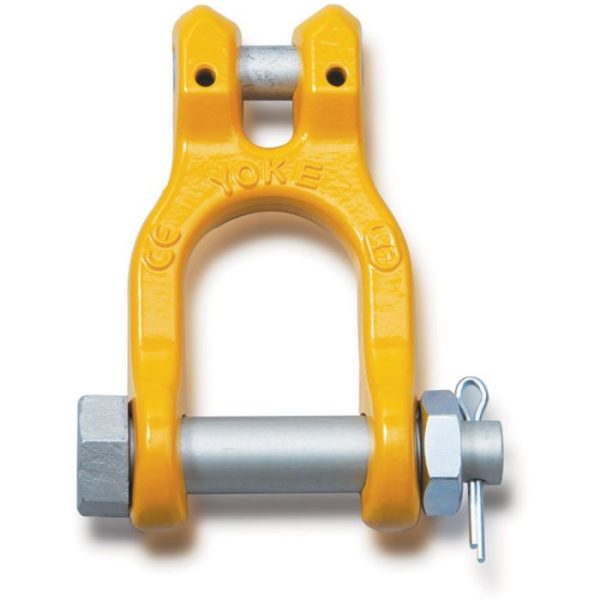

Yoke 8-066 Grade 80 Clevis Shackle 1/4″ – 5/16″ (WLL 2 ton)

Features:

• Quenched and Tempered Alloy Steel
• Tested according to DIN EN 1677

Specifications:

• Size (Shackle Body Thickness): 7mm – 8mm (1/4″ – 5/16″)
• Pin Type: Bolt, Nut, & Cotter
• Pin Size: 16mm (0.63″)
• Throat Opening (Width Between Ears): 33mm (1.30″)
• Throat Depth: 35mm (1.38″)
• Material: Alloy Steel
• Finish: Painted
• Working Load Limit (WLL): 2.00 tons (4400 lbs)
• Design Factor 4:1
