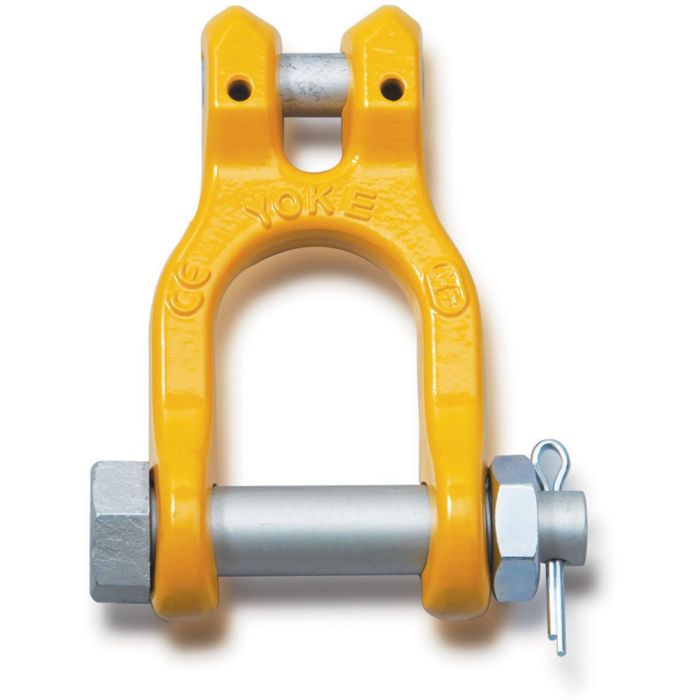

Yoke 8-066 Grade 80 Clevis Shackle 3/8″ (WLL 3.15 ton)

Features:

• Quenched and Tempered Alloy Steel
• Tested according to DIN EN 1677

Specifications:

• Size (Shackle Body Thickness): 10mm (3/8″)
• Pin Type: Bolt, Nut, & Cotter
• Pin Size: 20mm (0.79″)
• Throat Opening (Width Between Ears): 34mm (1.34″)
• Throat Depth: 48mm (1.89″)
• Material: Alloy Steel
• Finish: Painted
• Working Load Limit (WLL): 3.15 tons (6930 lbs)
• Design Factor 4:1
