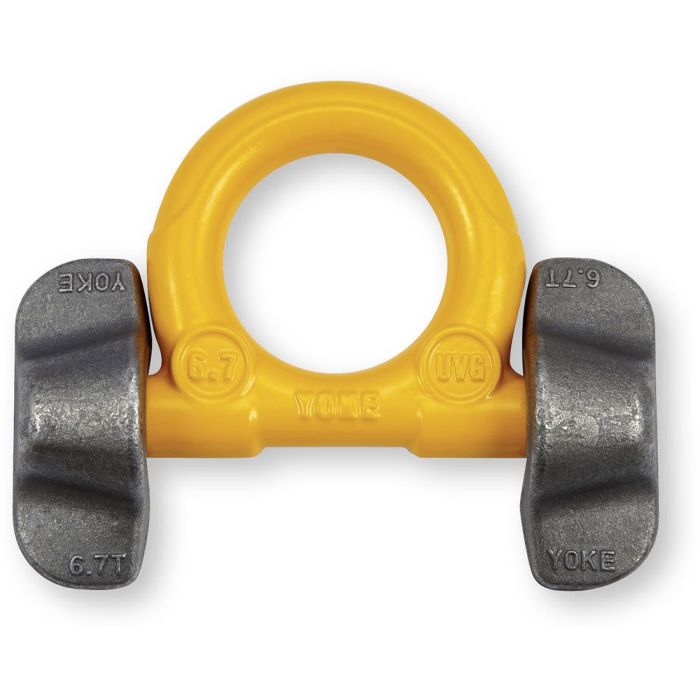

Yoke 8-082 Weld-On Load Ring 6.7 Ton

Features:

• Pivots 180°, designed minimizes head room
• Manufactured from forged alloy steel, quenched and tempered
• Manufactured and tested in accordance with EN1677-1
• Load rated parts are 100% magnaflux crack detected
• Proof tested to 2.5 times the WLL & Fatigue rated to 1.5 times the WLL
• Two points of attachment facilitate an even and optimal force distribution into the workpiece
• Welding block, forged from material with excellent welding properties
• Low profile design with high strength
• Ring is stowable thus avoiding the hazards of tripping and snagging

Specifications:

• Working Load Limit (WLL): 6.70 tons (14,740 lbs)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
