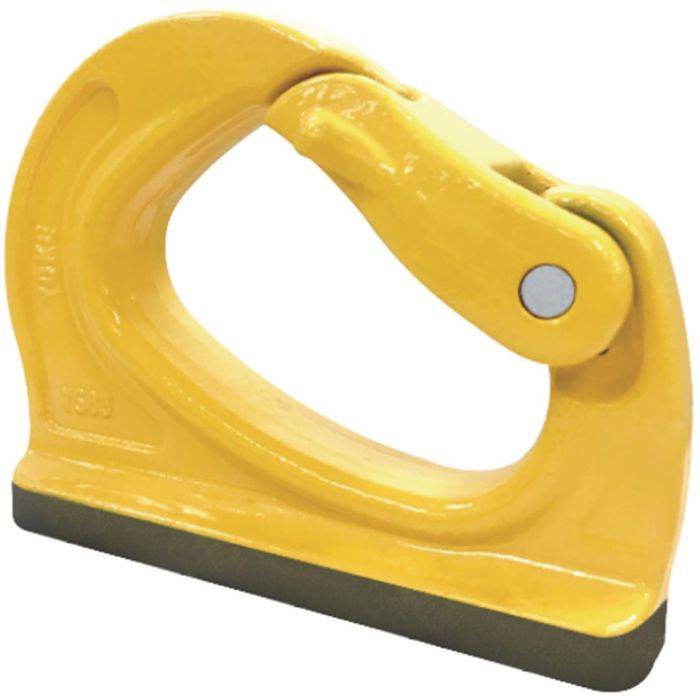

Yoke 8-083 Weld-On Excavator Hook 5 Ton

Features:

• Manufactured from forged alloy steel, quenched and tempered
• Manufactured and tested in accordance with EN1677-1
• Certified by DGUV GS-OA-15-03
• Load rated parts are 100% magnaflux crack detected
• Individual forged parts are traceable to Test Certification
• Proof tested to 2.5 times the WLL
• Fatigue rated to 1.5 times the WLL
• Meet or exceed all the requirements of ASME B30.26
• WLL forged onto each product for quick and easy identification
• Lugs designed to assist the welding process

Specifications:

• Working Load Limit (WLL): 5.00 tons (11,000 lbs)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 5:1
