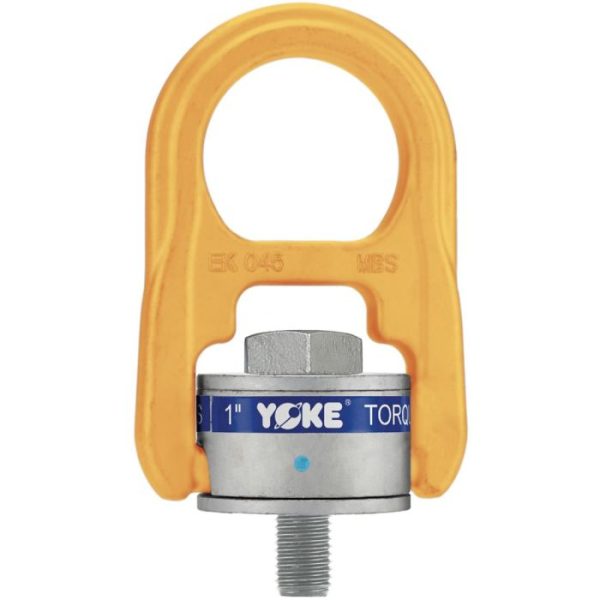

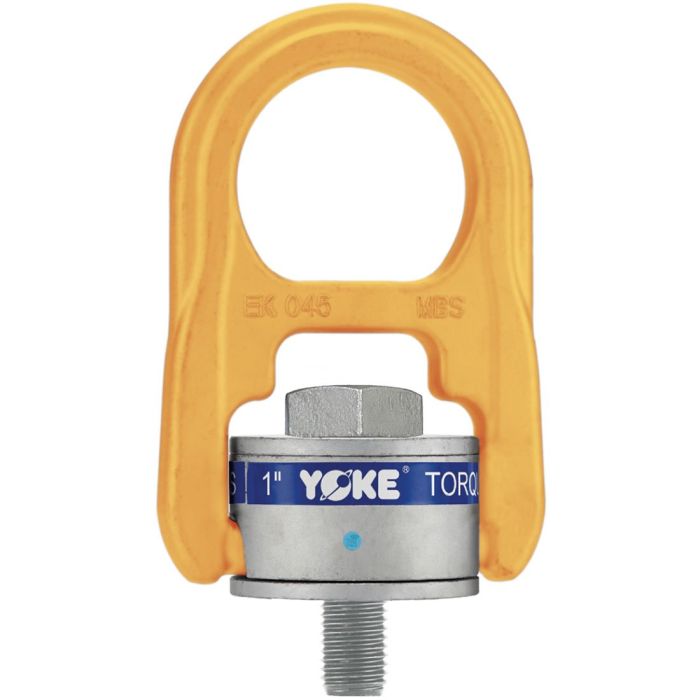

Yoke 8-204 Digital Long Hoist Ring 3/4″-10 x 1.73″

Features:

• Rotates through 360° and pivot 180°, rated at 100% at 90° angle
• Load rated parts are 100% magnaflux crack detected
• Bolt are UNC thread (ASME / ANSI B18.31M)
• Proof tested to 2.5 times the WLL & Fatigue rated to 1.5 times the WLL

Specifications:

• Bolt Diameter/Thread: 3/4″-10 (UNC Thread)
• Effective Thread Projection Length: 1.73″
• Material: Forged Alloy Steel – Quenched and Tempered
• Working Load Limit (Design Factor 5:1): 2.50 tons (5000 lbs)
• Working Load Limit (Design Factor 4:1): 6250 lbs
• Manufactured and tested in accordance with EN1677-1
• Standards & Certifications: ASME B30.26
