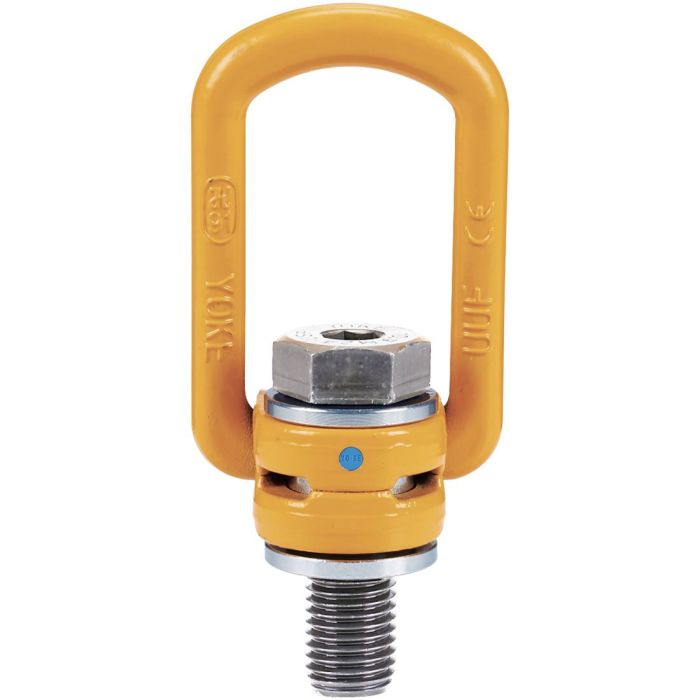

Features:
- Rotates through 360° and pivots 90°
- Load rated parts are 100% magnaflux crack detected
- Bolts are Metric thread
- Fatigue rated to 20,000 cycles at 1.5 times the WLL
- Proof tested to 2.5 times the WLL
Specifications:
- Bolt Diameter/Thread: M18-2.50
- Effective Thread Projection Length: 27mm
- Material: Alloy Steel – Quenched and Tempered
- Working Load Limit: 2.00 tons (4400 lbs)
- Design Factor 4:1
- Tested in accordance with EN1677-1
- Standards & Certifications: ASME B30.26
