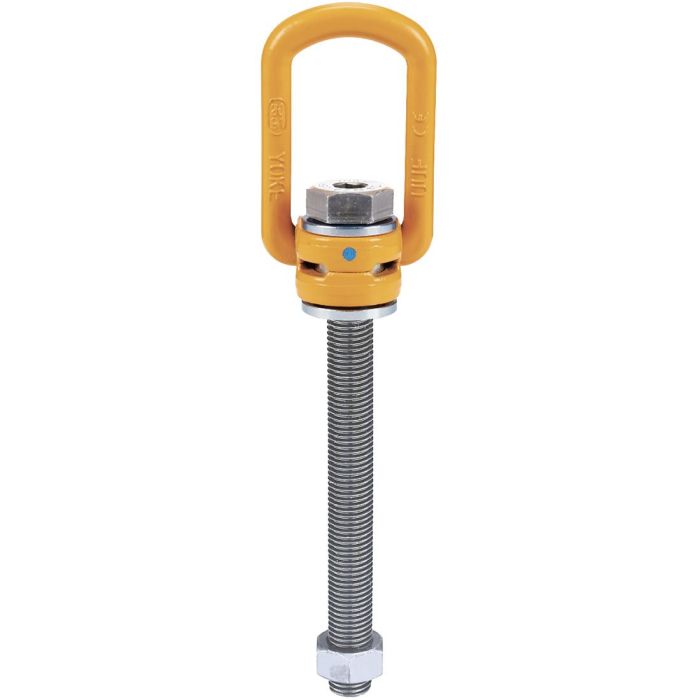

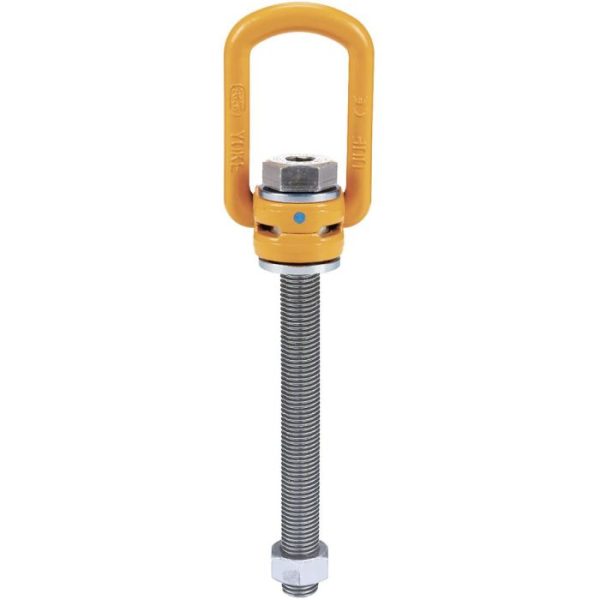

Yoke 8-211 Digital Long Bolt Lifting Point M10-1.50 x 96mm – Box/40

Features:

• Rotates through 360° and pivots 90°
• Load rated parts are 100% magnaflux crack detected
• Bolts are Metric thread (ASME / ANSI B18.3.1M)
• Proof tested to 2.5 times the WLL & Fatigue rated to 1.5 times the WLL

Specifications:

• Bolt Diameter/Thread: M10-1.50
• Effective Thread Projection Length: 96mm
• Material: Alloy Steel – Quenched and Tempered
• Working Load Limit: 0.63 tons (1375 lbs)
• Design Factor 4:1
• Manufactured and tested in accordance with EN1677-1
• Standards & Certifications: ASME B30.26
• Box of 40 pieces
