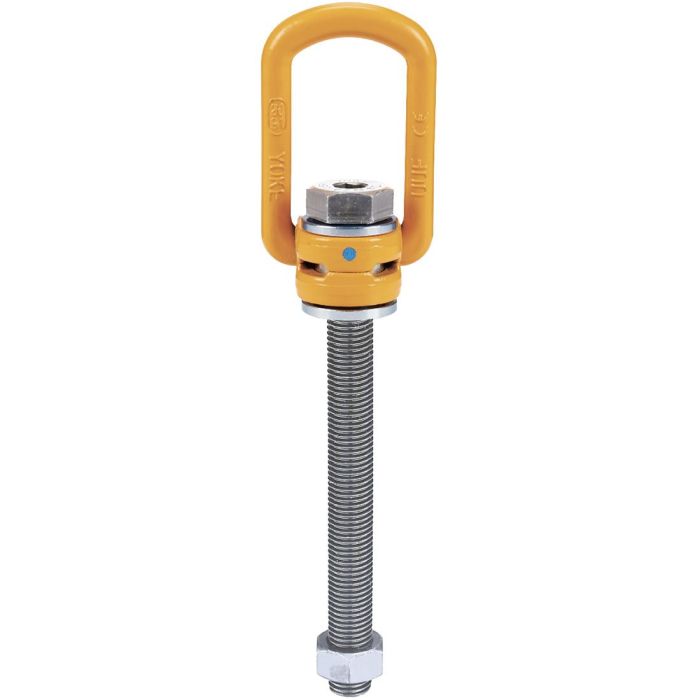

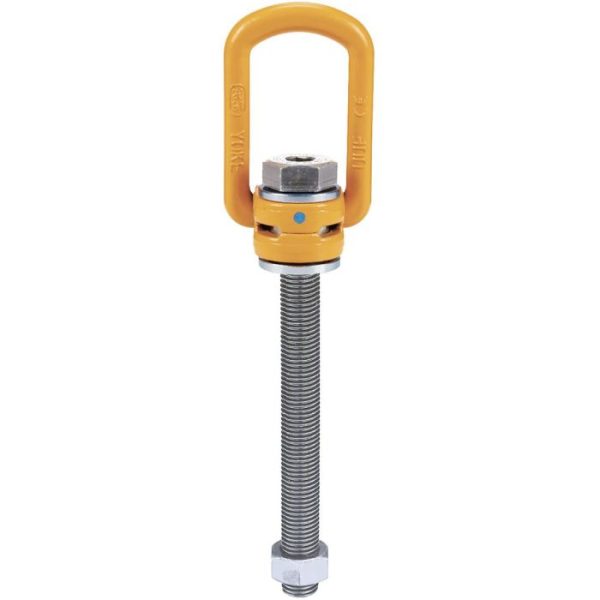

Features:
- Rotates through 360° and pivots 90°
- Load rated parts are 100% magnaflux crack detected
- Bolts are Metric thread
- Proof tested to 2.5 times the WLL & Fatigue rated to 1.5 times the WLL
Specifications:
- Bolt Diameter/Thread: M8-1.25
- Effective Thread Projection Length: 76mm
- Material: Alloy Steel – Quenched and Tempered
- Working Load Limit: 0.30 tons (660 lbs)
- Design Factor 4:1
- Manufactured and tested in accordance with EN1677-1
- Standards & Certifications: ASME B30.26
- Box of 40 pieces
