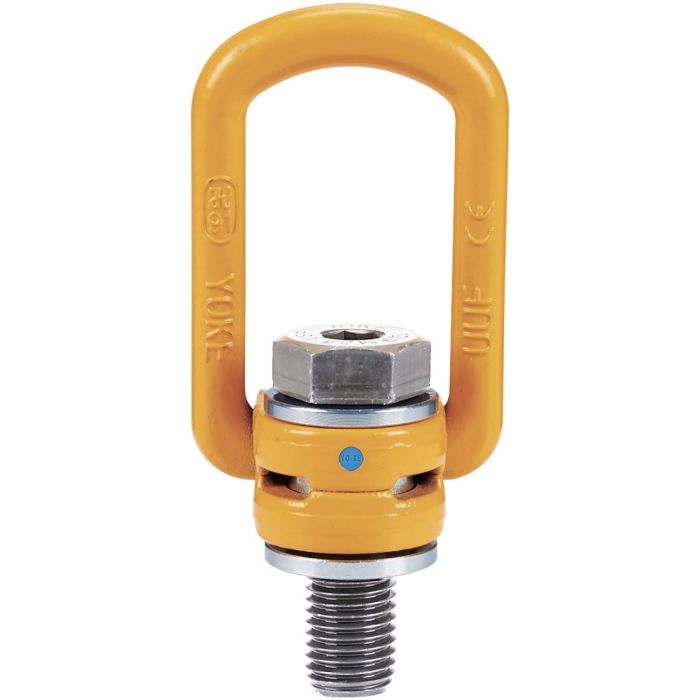

Yoke 8-212 Digital Lifting Point 3/4″-10 x 1.46″

Features:

• Rotates through 360° and pivots 90°
• Load rated parts are 100% magnaflux crack detected
• Bolts are UNC thread
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• Proof tested to 2.5 times the WLL

Specifications:

• Bolt Diameter/Thread: 3/4″-10 (UNC Thread)
• Effective Thread Projection Length: 1.46″
• Material: Alloy Steel – Quenched and Tempered
• Working Load Limit: 2.50 tons (5500 lbs)
• Design Factor 4:1
• Tested in accordance with EN1677-1
• Standards & Certifications: ASME B30.26
