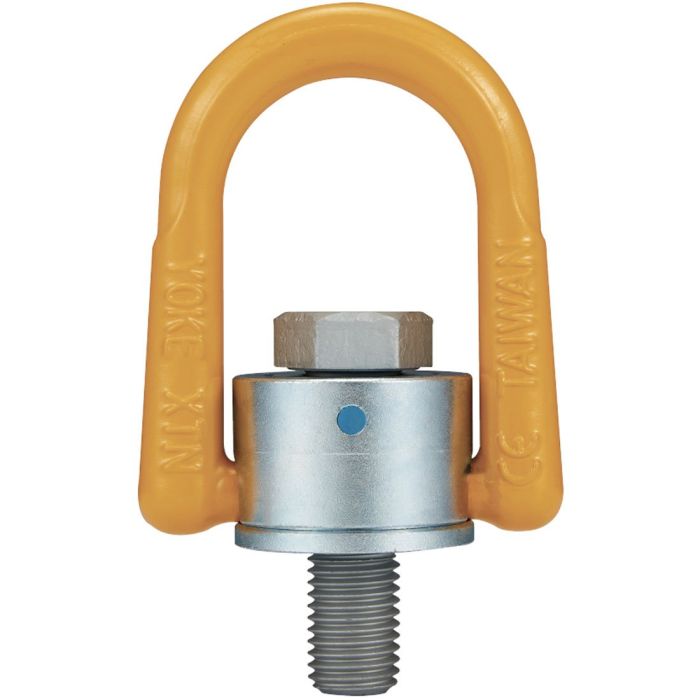

Yoke 8-231 Digital Anchor Point M12-1.75 x 20mm

$18.30

We Offer Customization & Great Prices! Feel Free to Contact Us!

10000 in stock

SKU: d483af201f88454e Category: Hoist Rings

Description

Features:

Rotates through 360° and pivot 180°, and simultaneously allows lifting from any direction
Load rated parts are 100% magnaflux crack detected
Bolt are Metric thread (ASME / ANSI B18.3.1M)
Proof tested to 2.5 times the WLL & Fatigue rated to 1.5 times the WLL

Specifications:

Bolt Diameter/Thread: M12-1.75
Effective Thread Projection Length: 20mm
Material: Forged Alloy Steel – Quenched and Tempered
Working Load Limit: 1.00 tons (2200 lbs)
Design Factor 4:1
Manufactured and tested in accordance with EN1677-1
Standards & Certifications: ASME B30.26
