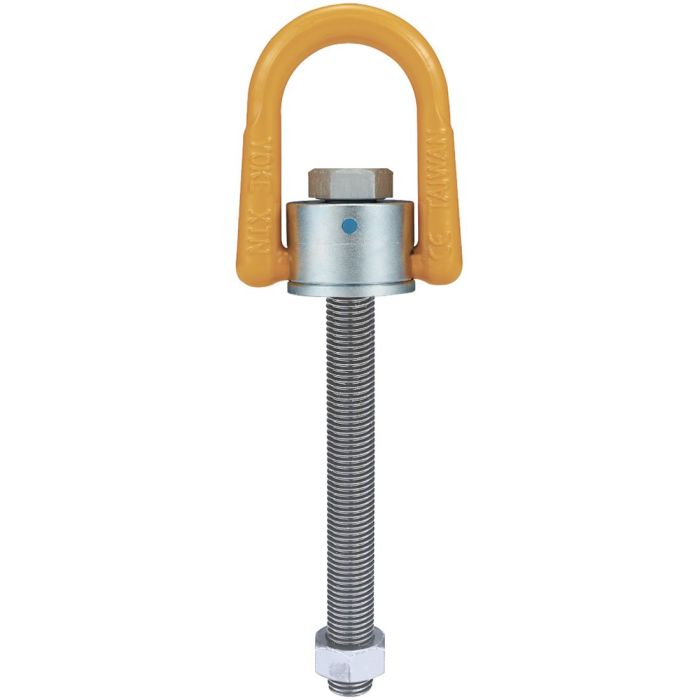

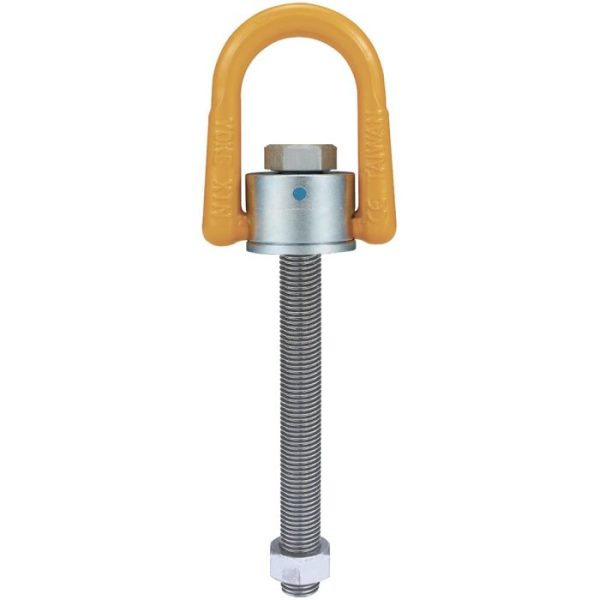

Yoke 8-231 Digital Long Bolt Anchor Point M16-2.00 x 149mm

Features:

• Rotates through 360° and pivot 180°, and simultaneously allows lifting from any direction
• Load rated parts are 100% magnaflux crack detected
• Bolt are Metric thread (ASME / ANSI B18.3.1M)
• Proof tested to 2.5 times the WLL & Fatigue rated to 1.5 times the WLL

Specifications:

• Bolt Diameter/Thread: M16-2.00
• Effective Thread Projection Length: 149mm
• Material: Forged Alloy Steel – Quenched and Tempered
• Working Load Limit: 2.00 tons (4400 lbs)
• Design Factor 4:1
• Manufactured and tested in accordance with EN1677-1
• Standards & Certifications: ASME B30.26
