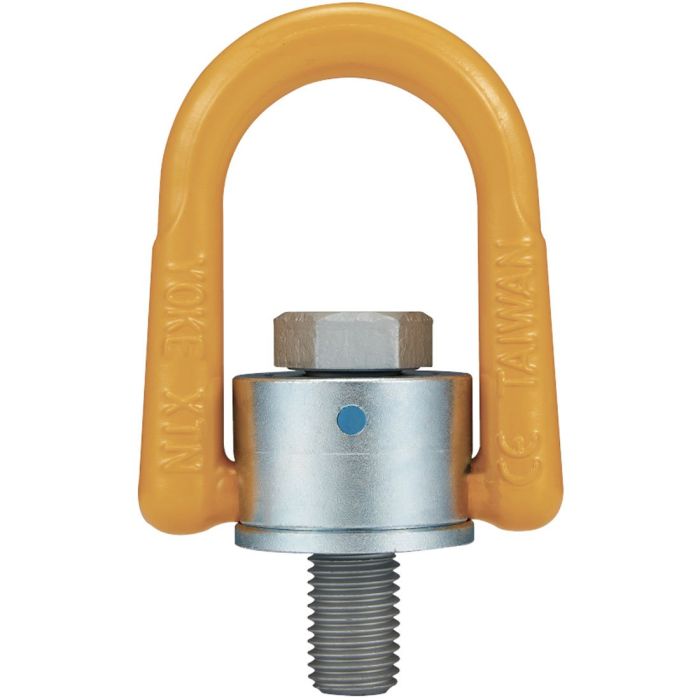

Yoke 8-232 Digital Anchor Point 1-1/4″-7 x 2.09″

Features:

• Rotates through 360° and pivot 180°, and simultaneously allows lifting from any direction
• Load rated parts are 100% magnaflux crack detected
• Bolt are UNC thread
• Proof tested to 2.5 times the WLL & Fatigue rated to 1.5 times the WLL

Specifications:

• Bolt Diameter/Thread: 1-1/4″-7 (UNC Thread)
• Effective Thread Projection Length: 2.09″
• Material: Forged Alloy Steel – Quenched and Tempered
• Working Load Limit: 6.25 tons (13,750 lbs)
• Design Factor 4:1
• Manufactured and tested in accordance with EN1677-1
• Standards & Certifications: ASME B30.26
