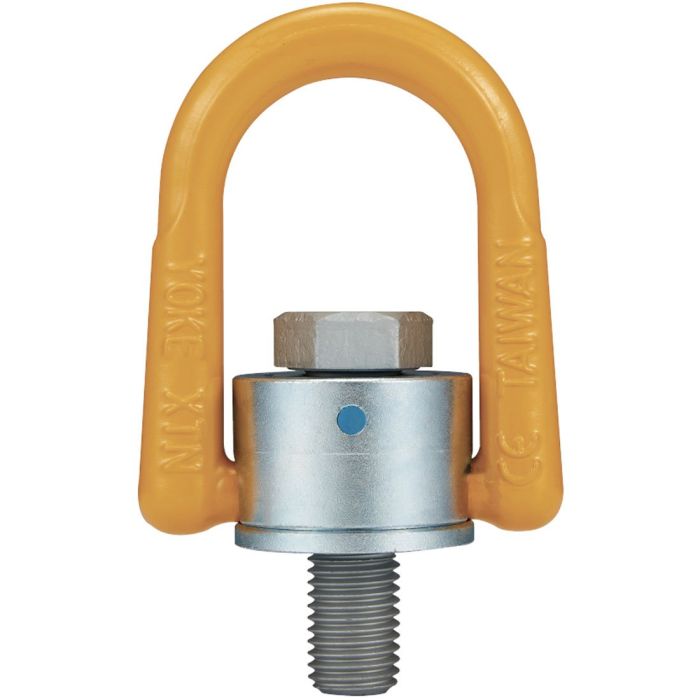

Features:
- Rotates through 360° and pivot 180°, and simultaneously allows lifting from any direction
- Load rated parts are 100% magnaflux crack detected
- Bolt are UNC thread
- Proof tested to 2.5 times the WLL & Fatigue rated to 1.5 times the WLL
Specifications:
- Bolt Diameter/Thread: 3/4″-10 (UNC Thread)
- Effective Thread Projection Length: 1.54″
- Material: Forged Alloy Steel – Quenched and Tempered
- Working Load Limit: 2.40 tons (5280 lbs)
- Design Factor 4:1
- Manufactured and tested in accordance with EN1677-1
- Standards & Certifications: ASME B30.26
