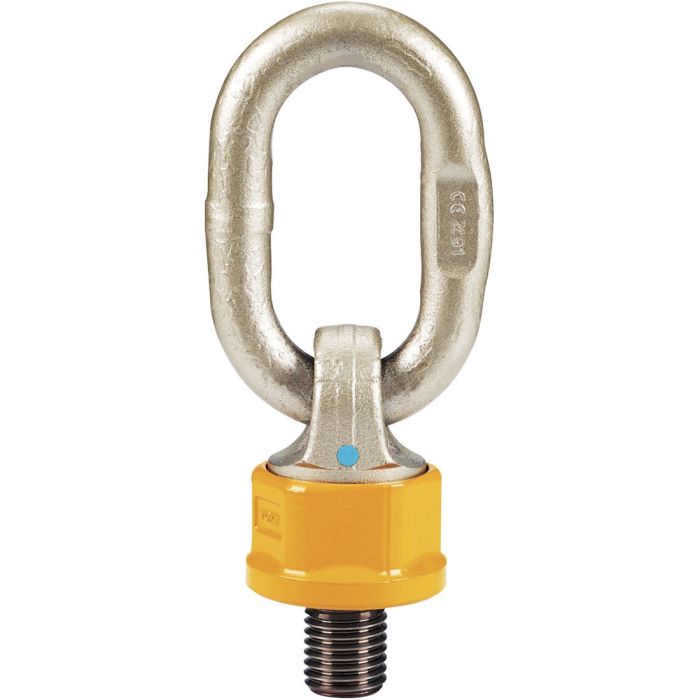

Features:
- Pivots to 230°, rotates through 360° due to its unique ball bearing design
- Load rated parts are 100% magnaflux crack detected
- Easy to attach or dismantle due to the forged hexagon shaped body of the Super Point
- Bolts are Metric thread (ASME / ANSI B18.3.1M)
- Proof tested to 2.5 times the WLL & Fatigue rated to 1.5 times the WLL
Specifications:
- Bolt Diameter/Thread: M72-6.00
- Effective Thread Projection Length: 108mm
- Material: Forged Alloy Steel – Quenched and Tempered
- Working Load Limit: 35.00 tons (77,000 lbs)
- Design Factor 4:1
- Manufactured and tested in accordance with EN1677-1
Warning:
- Capable of rotating under load but do not turn continuously in 90 degree direction at full load
