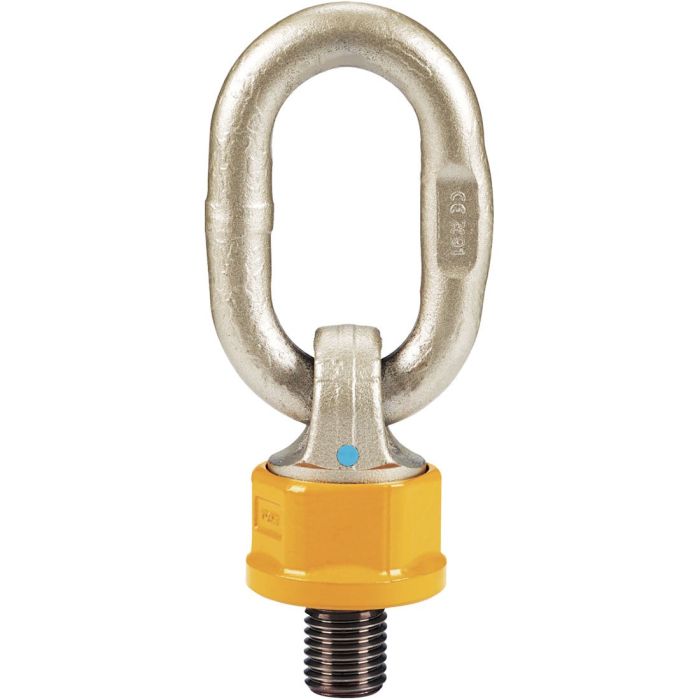

Yoke 8-252 Digital Super Point 1/2″-13 x 0.75″

Features:

• Pivots to 230°, rotates through 360° due to its unique ball bearing design
• Load rated parts are 100% magnaflux crack detected
• Easy to attach or dismantle due to the forged hexagon shaped body of the Super Point
• Bolts are UNC thread (ASME / ANSI B18.3.1M)
• Proof tested to 2.5 times the WLL & Fatigue rated to 1.5 times the WLL

Specifications:

• Bolt Diameter/Thread: 1/2″-13 (UNC Thread)
• Effective Thread Projection Length: 0.75″
• Material: Forged Alloy Steel – Quenched and Tempered
• Working Load Limit: 0.70 tons (1540 lbs)
• Design Factor 4:1
• Manufactured and tested in accordance with EN1677-1

Warning:

• Capable of rotating under load but do not turn continuously in 90 degree direction at full load
