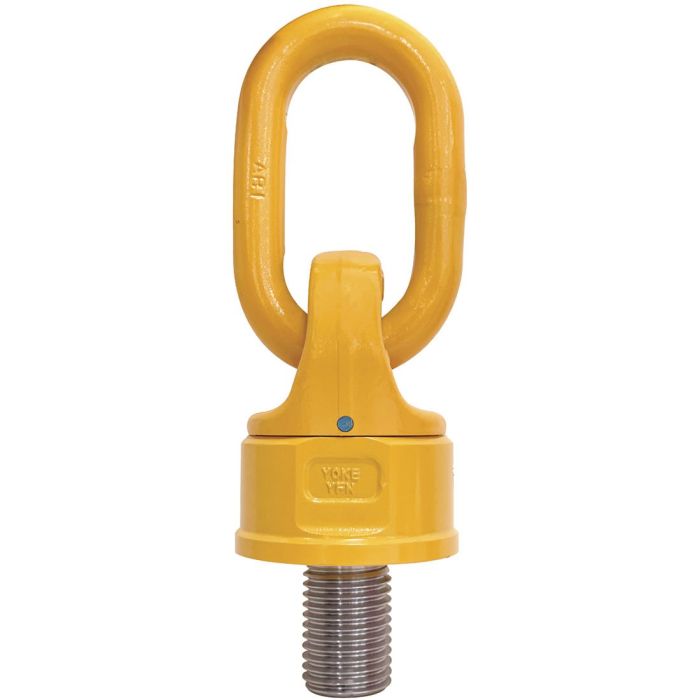

Features:
- Pivots to 230°, rotates through 360° due to its unique ball bearing design
- Easy to attach or dismantle due to the forged hexagon shaped body of the Swivel Point
- Load rated parts are 100% magnaflux crack detected
- Proof tested to 2.5 times the WLL & Fatigue rated to 20,000 cycles at 1.5 times the WLL
Specifications:
- Bolt Diameter/Thread: M16-2.00
- Thread Projection Length: 24mm
- Material: Forged Alloy Steel – Quenched and Tempered
- Working Load Limit: 1.50 tons (3300 lbs)
- Design Factor 4:1
- Tested in accordance with EN1677-4
- Standards & Certifications: ASME B30.26
Warning:
- Capable of rotating under load, but do not turn continuously in 90 degree direction at full load
