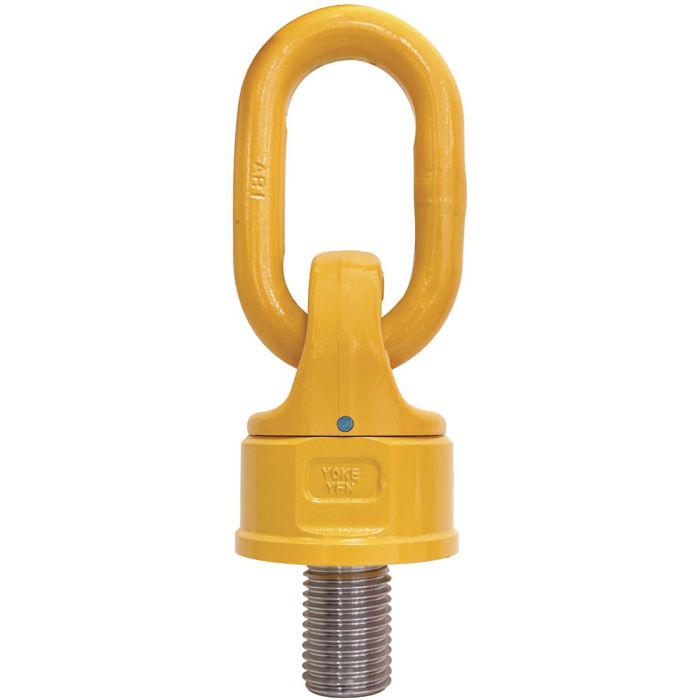

Yoke 8-272 Digital Swivel Point 2-1/4″-4.5 x 3.38″

Features:

• Pivots to 230°, rotates through 360° due to its unique ball bearing design
• Easy to attach or dismantle due to the forged hexagon shaped body of the Swivel Point
• Load rated parts are 100% magnaflux crack detected
• Maximum WLL in axial direction when load ring is aligned
• Proof tested to 2.5 times the WLL & Fatigue rated to 1.5 times the WLL

Specifications:

• Bolt Diameter/Thread: 2-1/4″-4.5 (UNC Thread)
• Thread Projection Length: 3.38″
• Material: Forged Alloy Steel – Quenched and Tempered
• Working Load Limit: 20.00 tons (44,000 lbs)
• Design Factor 4:1
• Tested in accordance with EN1677-4
• Standards & Certifications: ASME B30.26

Warning:

• Capable of rotating under load, but do not turn continuously in 90 degree direction at full load
