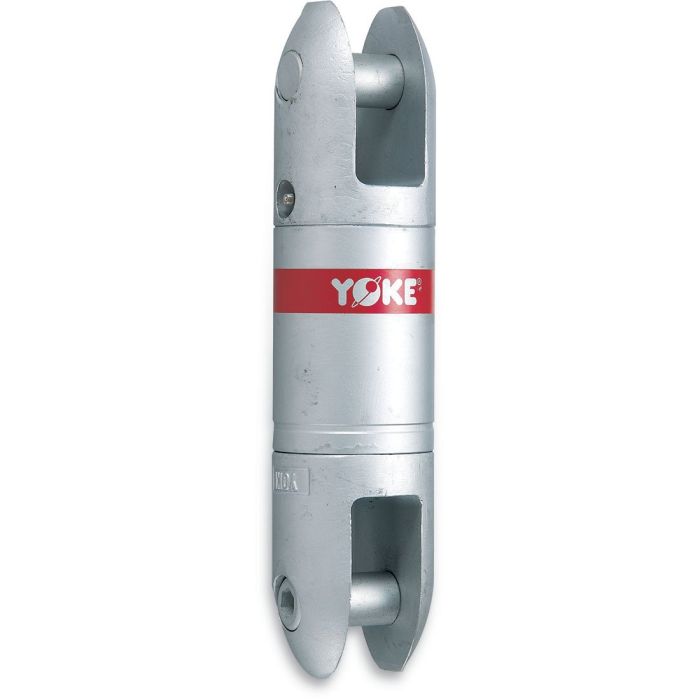

Yoke 8-301 Angular Contact Ball Bearing Swivel, Bullet to Bullet (WLL 1.5 ton)

Features:

• Zinc plated for corrosion resistance and longer life
• Manufactured with grease fittings for superior performance
• Designed for low starting torque and high rotation speed
• All Swivels parts are 100% magnaflux crack detected
• 20,000 cycle fatigue rate to 1.5 times working load limit
• Minimum Ultimate Load is 5 times the Working Load Limit
• Maximum Proof Load is 2 times the Working Load Limit

Specifications:

• Wire Line Size: 10mm (3/8″)
• Clevis Pin Diameter: 11mm (0.50″)
• Clevis Inside Width: 18mm (0.70″)
• Pin to Pin Center Distance: 112mm (4.40″)
• Working Load Limit (WLL): 1.50 tons (3300 lbs)
• Design Factor 5:1
