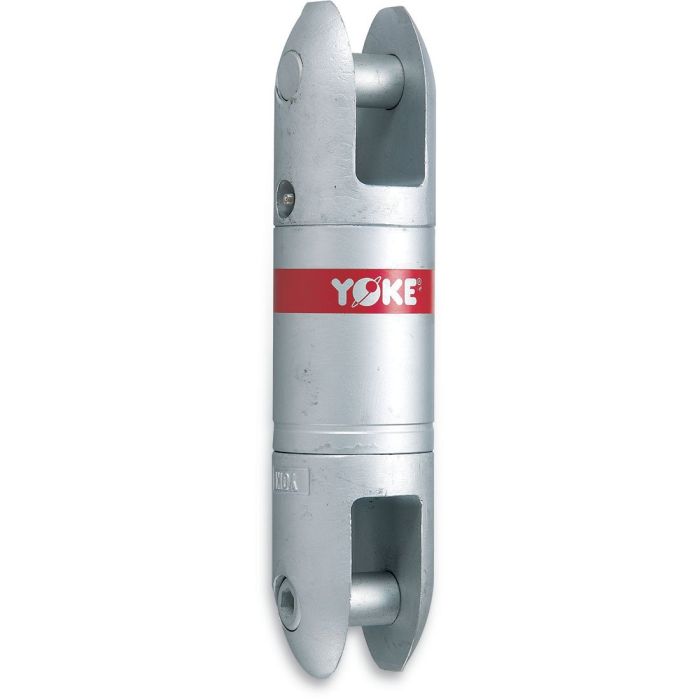

Yoke 8-301 Angular Contact Ball Bearing Swivel, Bullet to Bullet (WLL 15 ton)

Features:

• Zinc plated for corrosion resistance and longer life
• Manufactured with grease fittings for superior performance
• Designed for low starting torque and high rotation speed
• All Swivels parts are 100% magnaflux crack detected
• 20,000 cycle fatigue rate to 1.5 times working load limit
• Minimum Ultimate Load is 5 times the Working Load Limit
• Maximum Proof Load is 2 times the Working Load Limit

Specifications:

• Wire Line Size: 25mm (1″)
• Clevis Pin Diameter: 38mm (1.50″)
• Clevis Inside Width: 48mm (2.00″)
• Pin to Pin Center Distance: 317mm (12.50″)
• Working Load Limit (WLL): 15.00 tons (33,000 lbs)
• Design Factor 5:1
