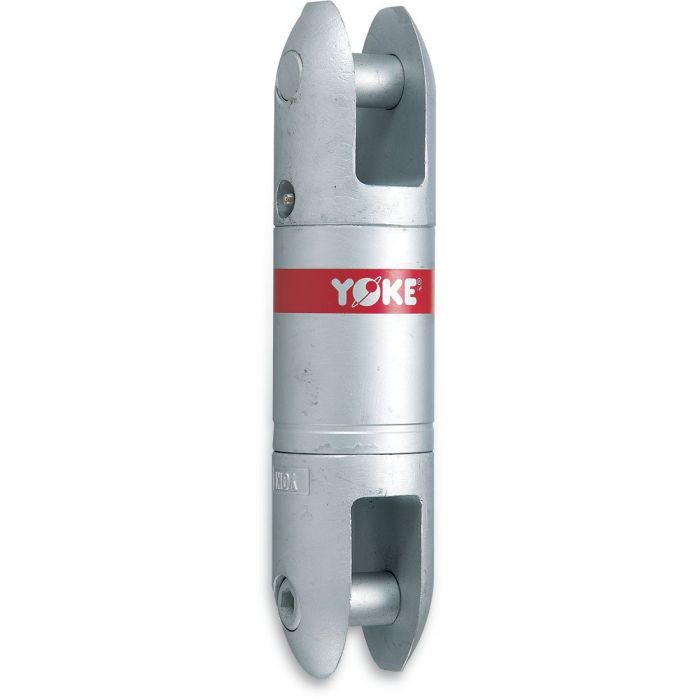

Yoke 8-301 Angular Contact Ball Bearing Swivel, Bullet to Bullet (WLL 25 ton)

Features:

• Zinc plated for corrosion resistance and longer life
• Manufactured with grease fittings for superior performance
• Designed for low starting torque and high rotation speed
• All Swivels parts are 100% magnaflux crack detected
• 20,000 cycle fatigue rate to 1.5 times working load limit
• Minimum Ultimate Load is 5 times the Working Load Limit
• Maximum Proof Load is 2 times the Working Load Limit

Specifications:

• Wire Line Size: 32mm (1-1/2″)
• Clevis Pin Diameter: 51mm (2.00″)
• Clevis Inside Width: 62mm (2.50″)
• Pin to Pin Center Distance: 374mm (14.70″)
• Working Load Limit (WLL): 25.00 tons (55,000 lbs)
• Design Factor 5:1
