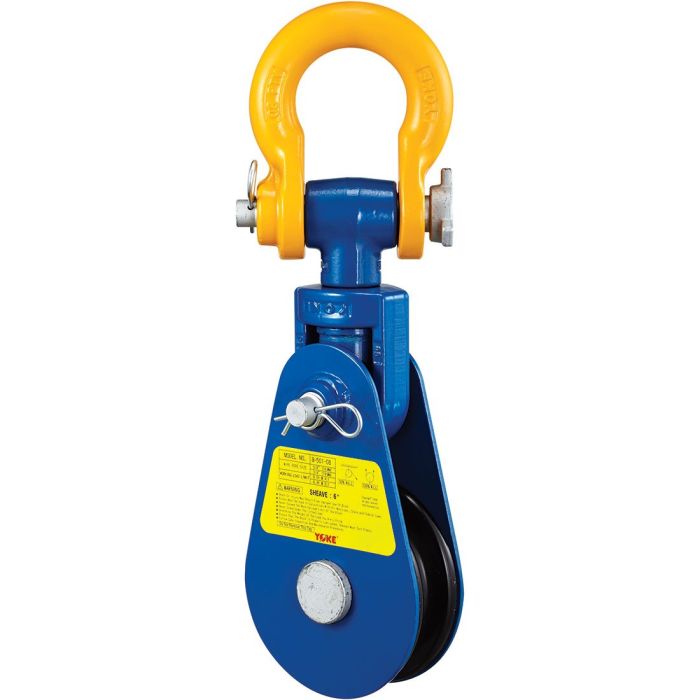

YOKE Super Snatch Blocks are manufactured of the highest quality tensile steel. The part number, wire rope size and working load limit are marked on each block.
Features:
- Certified by ABS, UKCA Type Approval
- Permanent batch codes link to test certificates for easy traceability
- Supplied with bronze bushings and pressure lube fittings
- Meets or exceeds all requirements of ASME B30.26
- Fatigue rated
- Minimum Ultimate Load is 4 times the Working Load Limit
Specifications:
- Sheave Diameter: 12″
- Bearing Type: Bronze Bushing
- Wire Rope Size: 25mm (1″)
- Working Load Limit (WLL): 20.00 tons (44,092 lbs)
- Design Factor 4:1
