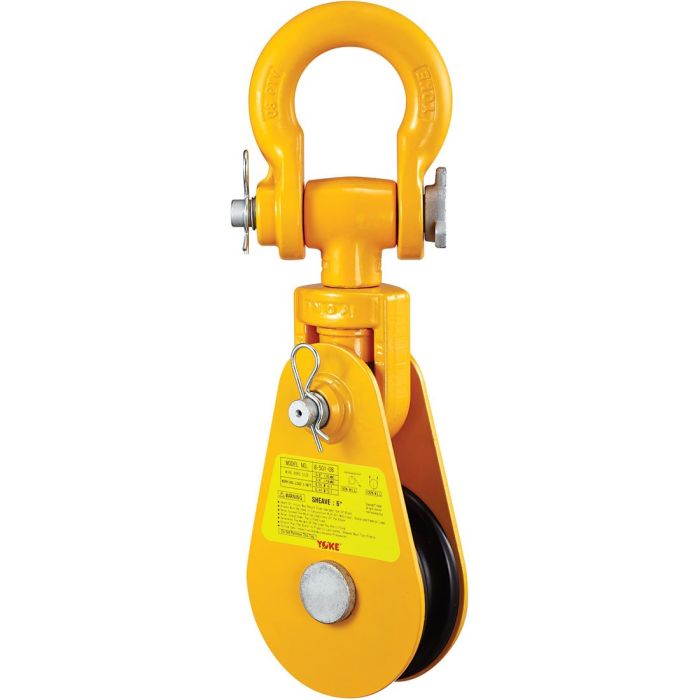

Yoke 8-561 Alloy Snatch Block with Shackle 12 Ton (6″ Sheave, 3/4″ – 7/8″ Wire Rope)

YOKE Alloy Snatch Blocks are manufactured of the highest quality alloy steel. The part number, wire rope size and working load limit are marked on each block.

Features:

• Certified by ABS Type Approval
• Permanent batch codes link to test certificates for easy traceability
• Supplied with bronze bushings and pressure lube fittings
• Meets or exceeds all requirements of ASME B30.26
• Fatigue rated
• Minimum Ultimate Load is 4 times the Working Load Limit
• Digital Chip embedded with Certificate for serial Traceability

Specifications:

• Sheave Diameter: 6″
• Bearing Type: Bronze Bushing
• Wire Rope Size: 19mm – 22mm (3/4″ – 7/8″)
• Working Load Limit (WLL): 12.00 tons (26,455 lbs)
• Design Factor 4:1
