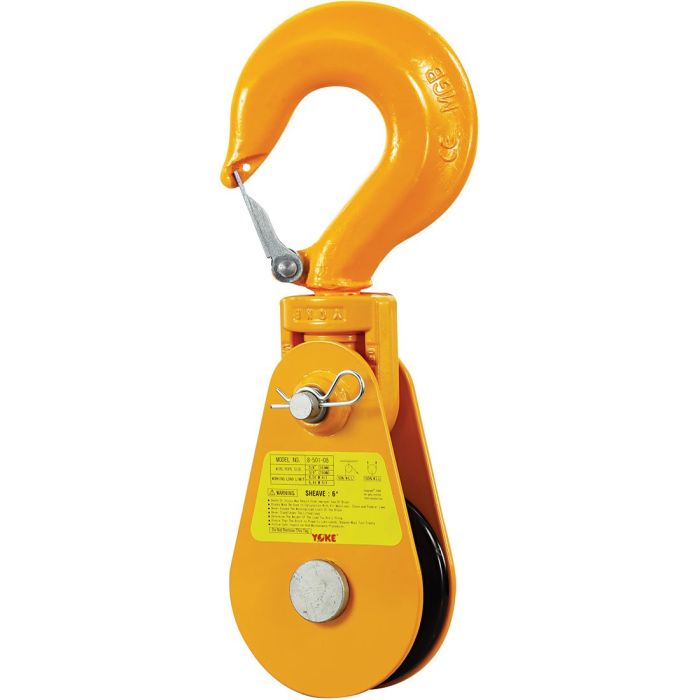

YOKE Alloy Snatch Blocks with Hook are manufactured of the highest quality alloy steel. The part number, wire rope size and working load limit are marked on each block.
Features:
- Supplied with bronze bushings and pressure lube fittings
- Fatigue rated
- Minimum Ultimate Load is 4 times the Working Load Limit
- Digital Chip embedded with Certificate for serial Traceability
- Meet or exceed all requirements of ASME B30.26
Specifications:
- Sheave Diameter: 6″
- Bearing Type: Bronze Bushing
- Wire Rope Size: 19mm – 22mm (3/4″ – 7/8″)
- Working Load Limit (WLL): 12.00 tons (26,400 lbs)
- Design Factor 4:1
