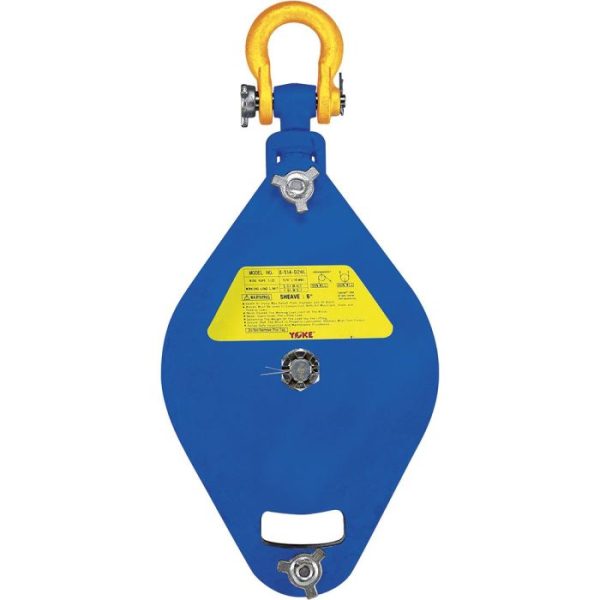

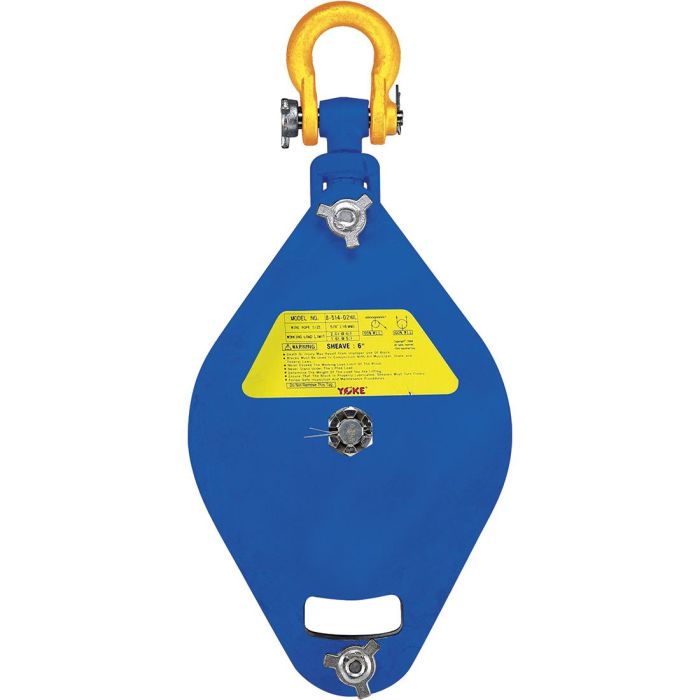

Yoke’s Oilfield Hoist Block is manufactured of the highest quality alloy steel. The part number, wire rope size and working load limit are marked on each block.
Features:
- Supplied with sealed tapered bearings for extended product life and faster line speeds
- Manufactured by ABS Type Approval and an API Q1 Certified facility
- Minimum Ultimate Load is 4 times the Working Load Limit
- Digital Chip embedded with Certificate for serial Traceability
Specifications:
- Sheave Diameter: 14″
- Bearing Type: Tapered Bearing
- Wire Rope Size: 16mm (5/8″)
- Working Load Limit (WLL): 12.00 tons (26,400 lbs)
- Design Factor 4:1
