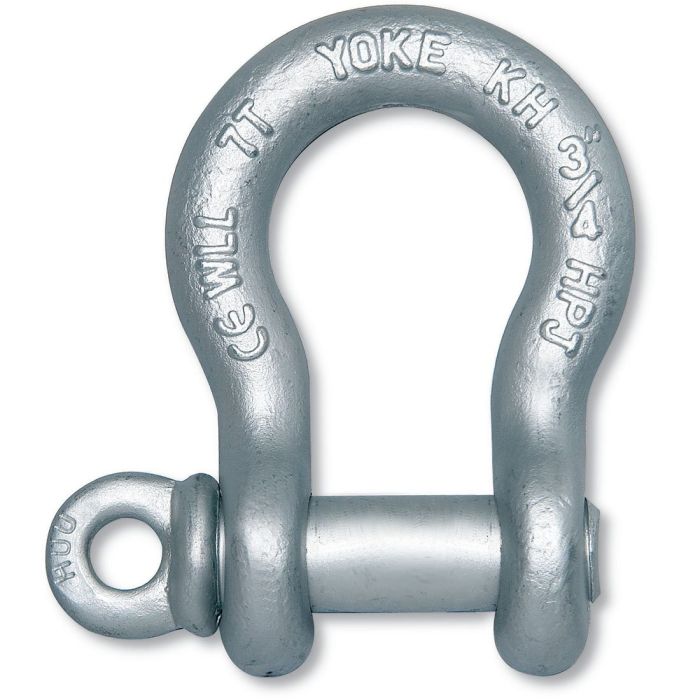

Yoke 8-807 Alloy Screw Pin Anchor Shackle 1-1/8″ – Plain

Features:

• Forged alloy steel with alloy pin
• 100% magnaflux crack detection during manufacturing
• 20,000 cycle fatigue rated to 1.5 times Working Load Limit
• Minimum Ultimate Load is 5 times the Working Load Limit
• Maximum Proof Load is 2 times the Working Load Limit

Specifications:

• Size (Shackle Body Thickness): 28mm (1-1/8″)
• Throat Opening (Width Between Ears): 46mm (1.81″)
• Throat Depth: 111mm (4.37″)
• Pin Size: 32mm (1.26″)
• Pin Type: Screw Pin
• Finish: Plain
• Material: Alloy Steel
• Working Load Limit: 15.00 tons (33,000 lbs)
• Design Factor 5:1
