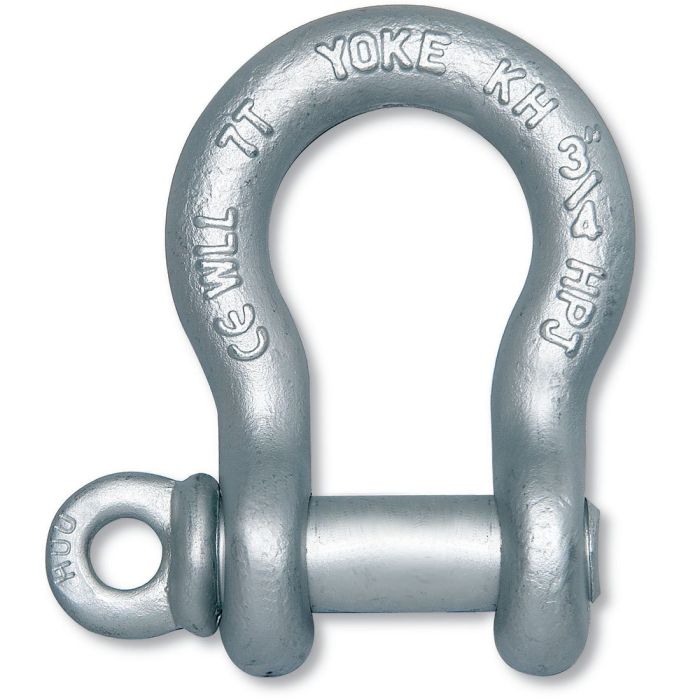

Yoke 8-807 Alloy Screw Pin Anchor Shackle 7/8″ – Plain

Features:

• Forged alloy steel with alloy pin
• 100% magnaflux crack detection during manufacturing
• 20,000 cycle fatigue rated to 1.5 times Working Load Limit
• Minimum Ultimate Load is 5 times the Working Load Limit
• Maximum Proof Load is 2 times the Working Load Limit

Specifications:

• Size (Shackle Body Thickness): 22mm (7/8″)
• Throat Opening (Width Between Ears): 38mm (1.50″)
• Throat Depth: 86mm (3.39″)
• Pin Size: 26mm (1.02″)
• Pin Type: Screw Pin
• Finish: Plain
• Material: Alloy Steel
• Working Load Limit: 9.50 tons (20,900 lbs)
• Design Factor 5:1
