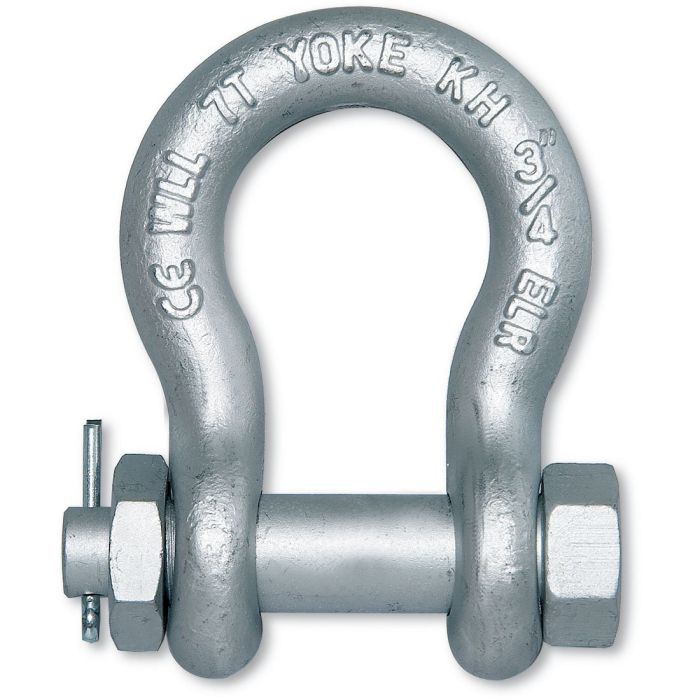

Yoke 8-808 Alloy Bolt Type Anchor Shackle 3/4″ – Plain

Features:

• Forged alloy steel with alloy pin
• 100% magnaflux crack detection during manufacturing
• 20,000 cycle fatigue rated to 1.5 times Working Load Limit
• Minimum Ultimate Load is 5 times the Working Load Limit
• Maximum Proof Load is 2 times the Working Load Limit

Specifications:

• Size (Shackle Body Thickness): 19mm (3/4″)
• Throat Opening (Width Between Ears): 33mm (1.30″)
• Throat Depth: 72mm (2.83″)
• Pin Size: 22mm (0.87″)
• Pin Type: Bolt, Nut, & Cotter
• Finish: Plain
• Material: Alloy Steel
• Working Load Limit: 7.00 tons (15,400 lbs)
• Design Factor 5:1
