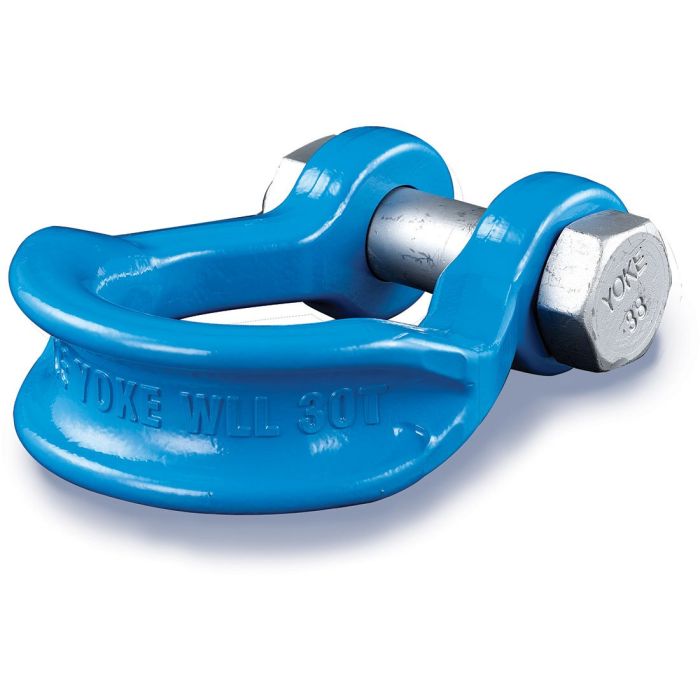

Yoke 8-809 Alloy Wide Body Shackle 1″ – Painted

Features:

• Forged alloy steel with alloy pin
• 100% magnaflux crack detection during manufacturing
• 20,000 cycle fatigue rated to 1.5 times Working Load Limit
• Minimum Ultimate Load is 5 times the Working Load Limit
• Maximum Proof Load is 2 times the Working Load Limit

Specifications:

• Size (Shackle Body Thickness): 26mm (1″)
• Throat Opening (Width Between Ears): 44mm (1.73″)
• Throat Depth: 118mm (4.64″)
• Pin Size: 29mm (1.14″)
• Pin Type: Bolt, Nut, & Cotter
• Finish: Painted
• Material: Alloy Steel
• Working Load Limit: 12.50 tons (27,500 lbs)
• Design Factor 5:1
