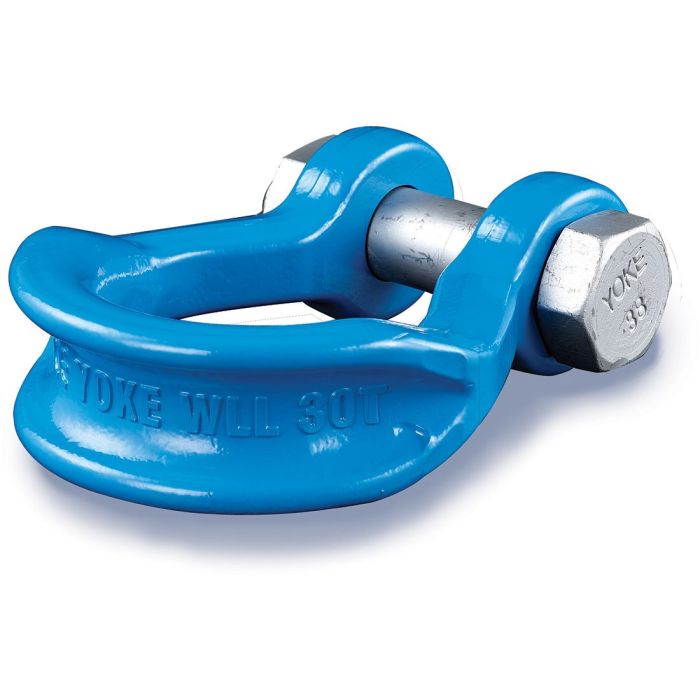

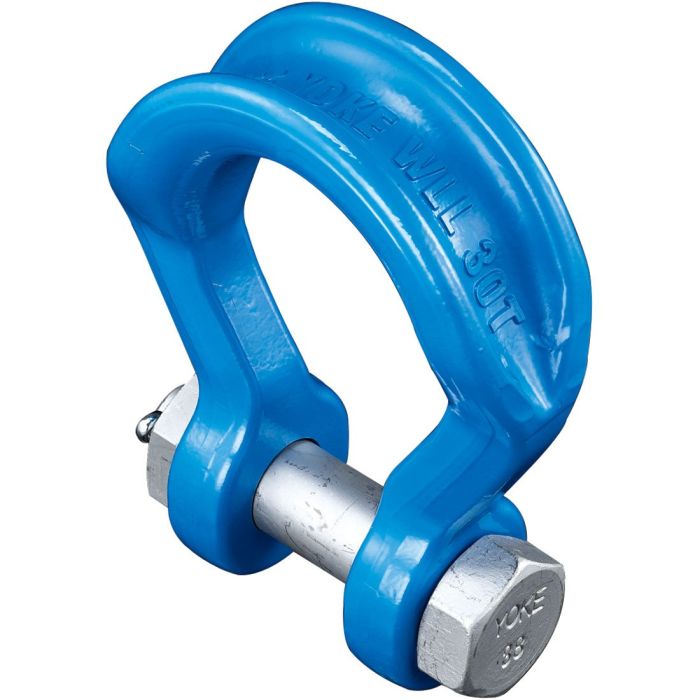

Yoke 8-809 Alloy Wide Body Shackle 3/4″ – Painted

Features:

• Forged alloy steel with alloy pin
• 100% magnaflux crack detection during manufacturing
• 20,000 cycle fatigue rated to 1.5 times Working Load Limit
• Minimum Ultimate Load is 5 times the Working Load Limit
• Maximum Proof Load is 2 times the Working Load Limit

Specifications:

• Size (Shackle Body Thickness): 19mm (3/4″)
• Throat Opening (Width Between Ears): 33mm (1.30″)
• Throat Depth: 91mm (3.58″)
• Pin Size: 22mm (0.87″)
• Pin Type: Bolt, Nut, & Cotter
• Finish: Painted
• Material: Alloy Steel
• Working Load Limit: 7.00 tons (15,400 lbs)
• Design Factor 5:1
