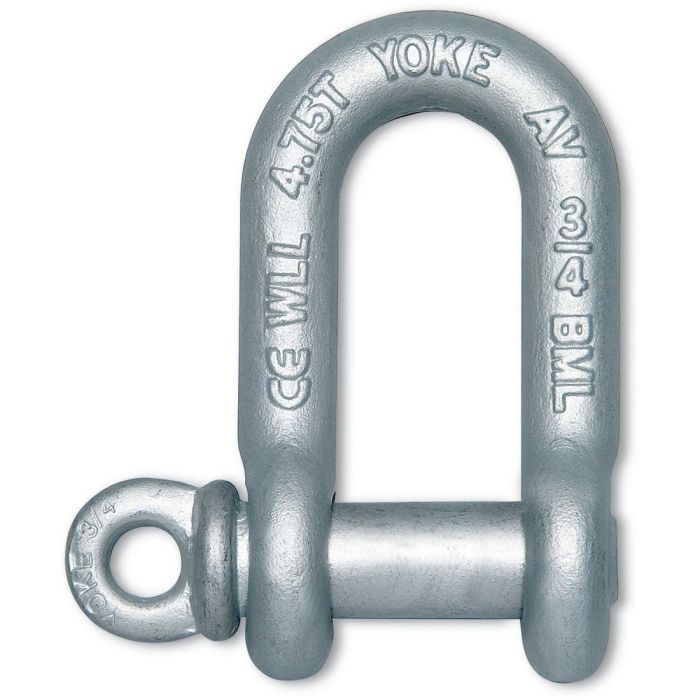

Yoke 8-834 Screw Pin Chain Shackle 3/8″ Forged – Plain

Features:

• Forged carbon steel with alloy pin
• 100% magnaflux crack detection during manufacturing
• 20,000 cycle fatigue rated to 1.5 times Working Load Limit
• Minimum Ultimate Load is 6 times the Working Load Limit
• Maximum Proof Load is 2 times the Working Load Limit

Specifications:

• Size (Shackle Body Thickness): 3/8″
• Throat Opening (Width Between Ears): 16mm (0.63″)
• Throat Depth: 36mm (1.42″)
• Pin Size: 11mm (0.43″)
• Pin Type: Screw Pin
• Finish: Plain
• Material: Carbon Steel
• Working Load Limit: 1.00 tons (2200 lbs)
• Design Factor 6:1
