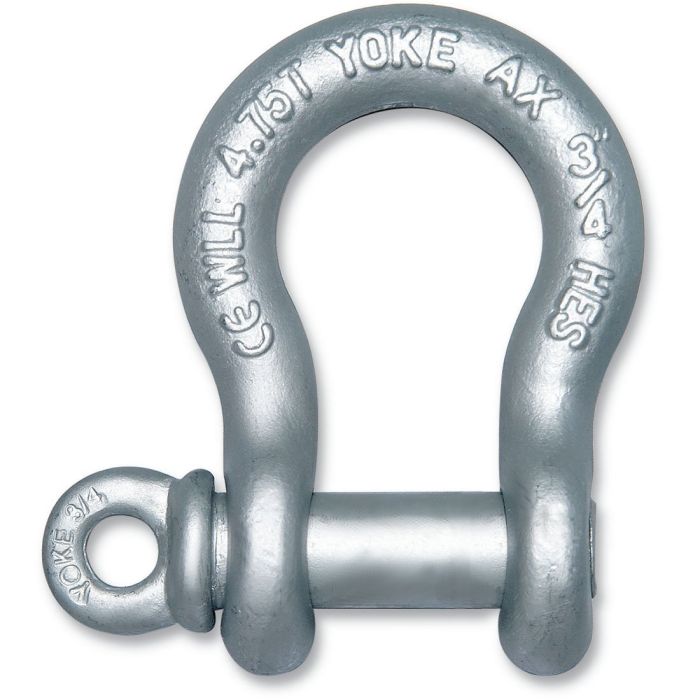

Yoke 8-837 Screw Pin Anchor Shackle 1-1/2″ Forged – Plain

Features:

• Forged carbon steel with alloy pin
• 100% magnaflux crack detection during manufacturing
• 20,000 cycle fatigue rated to 1.5 times Working Load Limit
• Minimum Ultimate Load is 6 times the Working Load Limit
• Maximum Proof Load is 2 times the Working Load Limit

Specifications:

• Size (Shackle Body Thickness): 38mm (1-1/2″)
• Throat Opening (Width Between Ears): 60mm (2.36″)
• Throat Depth: 146mm (5.75″)
• Pin Size: 45mm (1.77″)
• Pin Type: Screw Pin
• Finish: Plain
• Material: Carbon Steel
• Working Load Limit: 17.00 tons (37,400 lbs)
• Design Factor 6:1
