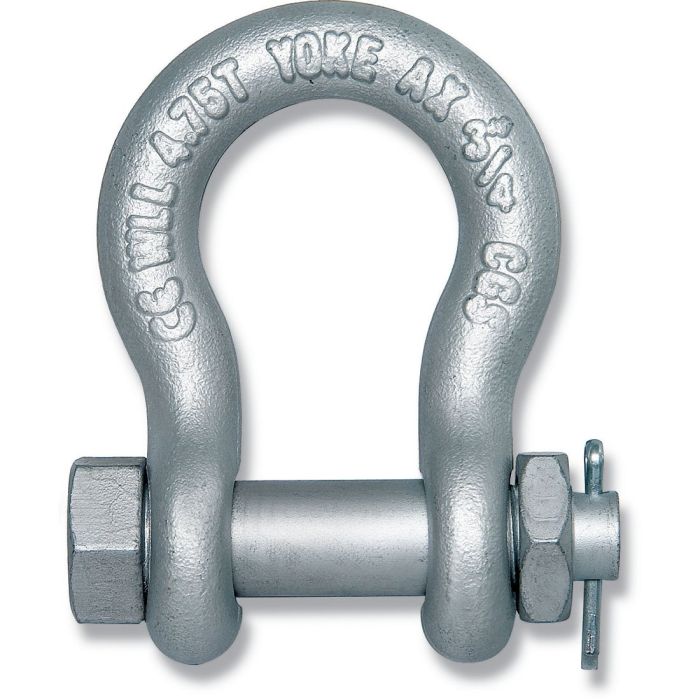

Yoke 8-838 Bolt Type Anchor Shackle 1-3/4″ Forged – Plain

Features:

• Forged carbon steel with alloy pin
• 100% magnaflux crack detection during manufacturing
• 20,000 cycle fatigue rated to 1.5 times Working Load Limit
• Minimum Ultimate Load is 6 times the Working Load Limit
• Maximum Proof Load is 2 times the Working Load Limit

Specifications:

• Size (Shackle Body Thickness): 45mm (1-3/4″)
• Throat Opening (Width Between Ears): 73mm (2.87″)
• Throat Depth: 178mm (7″)
• Pin Size: 51mm (2″)
• Pin Type: Bolt, Nut, & Cotter
• Finish: Plain
• Material: Carbon Steel
• Working Load Limit: 25.00 tons (55,000 lbs)
• Design Factor 6:1
