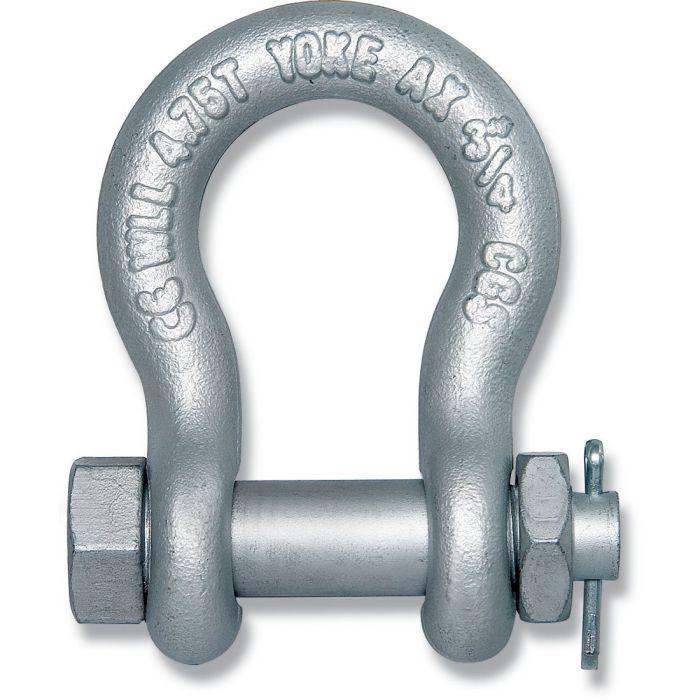

Yoke 8-838 Bolt Type Anchor Shackle 1-3/8″ Forged – Plain

Features:

• Forged carbon steel with alloy pin
• 100% magnaflux crack detection during manufacturing
• 20,000 cycle fatigue rated to 1.5 times Working Load Limit
• Minimum Ultimate Load is 6 times the Working Load Limit
• Maximum Proof Load is 2 times the Working Load Limit

Specifications:

• Size (Shackle Body Thickness): 36mm (1-3/8″)
• Throat Opening (Width Between Ears): 59mm (2.32″)
• Throat Depth: 134mm (5.28″)
• Pin Size: 38mm (1.50″)
• Pin Type: Bolt, Nut, & Cotter
• Finish: Plain
• Material: Carbon Steel
• Working Load Limit: 13.50 tons (29,700 lbs)
• Design Factor 6:1
