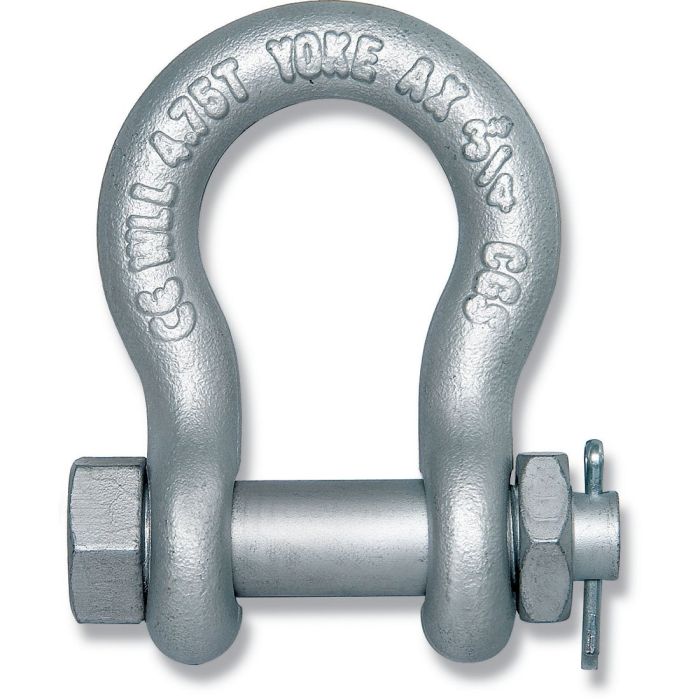

Yoke 8-838 Bolt Type Anchor Shackle 2″ Forged – Plain

Features:

• Forged carbon steel with alloy pin
• 100% magnaflux crack detection during manufacturing
• 20,000 cycle fatigue rated to 1.5 times Working Load Limit
• Minimum Ultimate Load is 6 times the Working Load Limit
• Maximum Proof Load is 2 times the Working Load Limit

Specifications:

• Size (Shackle Body Thickness): 51mm (2″)
• Throat Opening (Width Between Ears): 83mm (3.27″)
• Throat Depth: 197mm (7.76″)
• Pin Size: 57mm (2.24″)
• Pin Type: Bolt, Nut, & Cotter
• Finish: Plain
• Material: Carbon Steel
• Working Load Limit: 35.00 tons (77,000 lbs)
• Design Factor 6:1
