Yoke 8-921 ROV Eye Sling Hook 11 Ton

Features:

• Forged alloy steel, quenched and tempered
• Designed specifically for ROV (Remote Operated Vehicle) application
• Individually stamped with the Working Load Limit
• Shackle Bows are painted yellow to ensure ease of sight in water
• Digital Chip embedded with Certificate for serial Traceability
• Minimum Ultimate Load is 4 times the Working Load Limit
• Maximum Proof Load is 2 times the Working Load Limit

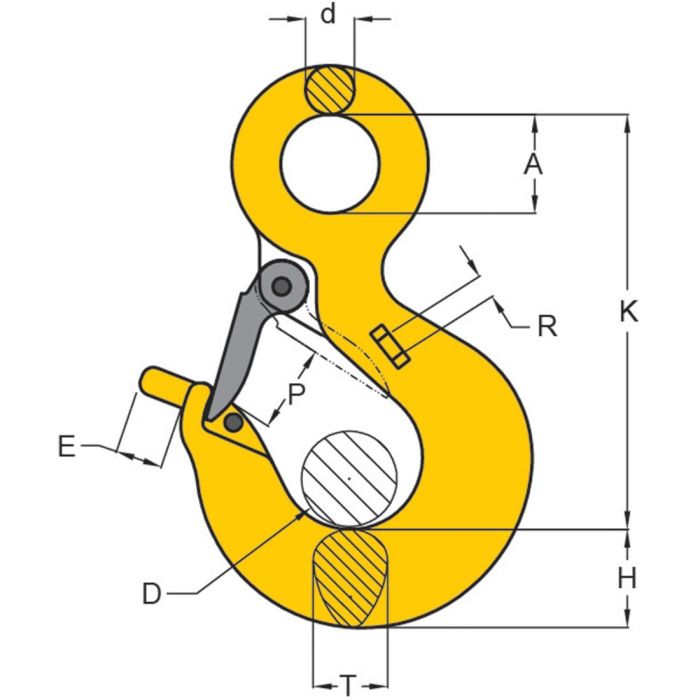

Specifications:

• Working Load Limit (WLL): 11.00 tons (24,251 lbs)
• (A): 62mm (2.44″)
• (D): 57mm (2.24″)
• (d): 28mm (1.10″)
• (E): 30mm (1.18″)
• (H): 58mm (2.28″)
• (K): 232mm (9.13″)
• (P): 57mm (2.24″)
• (R): 8mm (0.31″)
• (T): 48mm (1.89″)
• Material: Alloy Steel
• Finish: Painted
• Design Factor 4:1
